Trim - Shoulder - Seat - 2nd Row - LH - Remove And Replace: Install

  1. Maneuver the center 2nd row seat belt into the LH 2nd row seat shoulder plastic trim, connect the electrical connector, and then secure the push-pull rivets (x3) and clips (x5) that attach the trim to the seat assembly.
    NOTE: There are 2 clips located at front of the trim and 3 clips located at the rear of the trim. There are 2 rivets located at the front of the trim and 1 rivet located at the outboard side.
    G00631692Courtesy of TESLA, INC.
    G00631690Courtesy of TESLA, INC.
    G00631687Courtesy of TESLA, INC.
    G00631688Courtesy of TESLA, INC.
    G00631689Courtesy of TESLA, INC.
    G00631691Courtesy of TESLA, INC.
  2. Install the clips (x4) and datums (x2) that attach the LH 2nd row backrest cushion to the seat assembly.
    G00631693Courtesy of TESLA, INC.

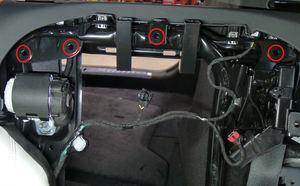

    G00631694Courtesy of TESLA, INC.

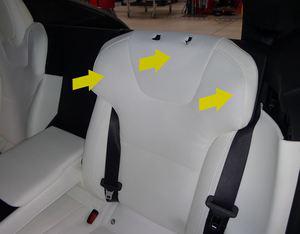

    G00631695Courtesy of TESLA, INC.
  3. Install the 2nd row center seatbelt escutcheon. See Escutcheon - Seatbelt - 2nd Row - LH (Remove And Replace) .
  4. Slide the 2nd row armrest rim down into the 2nd row backrest frame, and then secure the rivet and datums.
    G00631696Courtesy of TESLA, INC.
    G00631697Courtesy of TESLA, INC.
    G00631698Courtesy of TESLA, INC.
  5. Fold the 2nd row armrest up
  6. Install a new bolt that attaches the 2nd row center seat belt lower anchor to the vehicle.

    25 N.m (18.4 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 15 mm socket
    G00631677Courtesy of TESLA, INC.
  7. Install the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove And Replace) .
  8. Install the LH and RH 2nd row seat outer bolsters. See Bolster - Outer - Seat - 2nd Row - LH (Remove And Replace) .
  9. Fold LH 2nd row seat to the down position.
  10. Position the LH 2nd row back side cover onto the seat assembly, and then secure the clips (x2) that attach the cover to the assembly.
    G00631699Courtesy of TESLA, INC.
    G00631700Courtesy of TESLA, INC.
  11. Install the LH 2nd row backrest guide locks. See Guide Lock - Headrest - 2nd Row (Remove And Replace) .
  12. Install the LH 2nd row headrest. See Headrest - 2nd Row - LH (Remove And Replace) .
  13. Fasten the clip that attaches the LH 2nd row backrest harness to the backrest, and then connect the electrical connector.
    G00631701Courtesy of TESLA, INC.
    G00631702Courtesy of TESLA, INC.
  14. Install the LH 2nd row seat back panel. See Back Panel - 2nd Row Seat - LH (Remove And Replace) .
  15. Install the rear trunk parcel shelf. See Parcel Shelf - Rear Trunk (Remove and Replace) .
  16. Close the liftgate.
  17. Restore the driver and front passenger seats back to their original position.
  18. Close all the windows and close all the doors.
