Cover - Seat Back - 2nd Row Seat - LH - Remove And Replace: Remove

  1. Open the LH front door and lower the LH front window.
  2. Open the LH rear door and lower the LH rear window.
  3. Move the driver seat fully forward.
  4. Remove the LH 2nd row back panel. See Back Panel - 2nd Row Seat - LH (Remove And Replace) .
  5. Remove the LH 2nd row headrest. See Headrest - 2nd Row - LH (Remove And Replace) .
  6. Remove the LH and RH 2nd row backrest guide locks. See Guide Lock - Headrest - 2nd Row (Remove And Replace) .

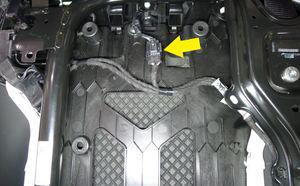

  7. Disconnect the LH 2nd row backrest harness, and then release the clip that attaches the harness to the backrest.

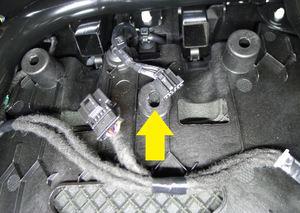

    G00631572Courtesy of TESLA, INC.
    G00631573Courtesy of TESLA, INC.

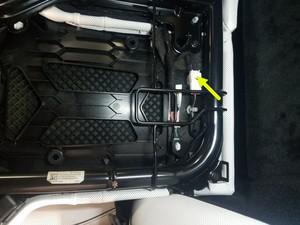

  8. Disconnect the LH 2nd row backrest cushion heat pad electrical connector.
    G00631574Courtesy of TESLA, INC.

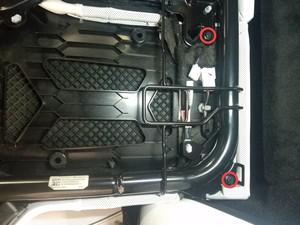

  9. Remove the bolts (x2) that attach the LH 2nd row backrest cushion to the back frame

    8 N.m (5.9 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm deep socket
    G00631575Courtesy of TESLA, INC.
  10. Fold the LH 2nd row seat to the vertical position, but do not latch the seat back.
    G00631576Courtesy of TESLA, INC.

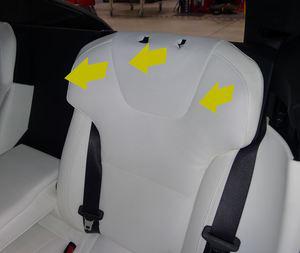

  11. Release the clips (x4) that attach the LH 2nd row backrest cushion to the backrest frame, and then remove the cushion assembly from the vehicle.
    G00631577Courtesy of TESLA, INC.
    G00631578Courtesy of TESLA, INC.
  12. Release the clips that attach the LH 2nd row backrest cushion heat pad harness to the LH 2nd row seat back substrate.
    G00631579Courtesy of TESLA, INC.
  13. Release the hooks (x4) that attach the bottom portion of the LH 2nd row seat back cover to the LH 2nd row seat back substrate.
    G00631580Courtesy of TESLA, INC.
  14. Release clips (x4) that attach the LH 2nd row seat back cover to the LH 2nd row seat back substrate.
    G00631581Courtesy of TESLA, INC.

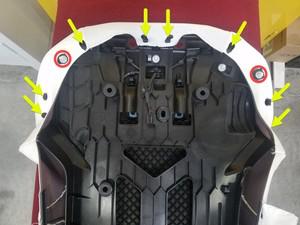

  15. Release the hooks (x6) and clips (x2) that attach the top portion of the LH 2nd row seat back cover to the LH 2nd row seat back substrate
    G00631582Courtesy of TESLA, INC.
  16. Pull the top portion of the LH 2nd row seat back cover down and off of the LH 2nd row seat back substrate
    G00631583Courtesy of TESLA, INC.
    G00631584Courtesy of TESLA, INC.

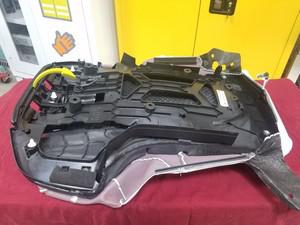

  17. Remove the LH 2nd row seat back substrate from the cushion assembly.
    G00631585Courtesy of TESLA, INC.
    G00631586Courtesy of TESLA, INC.
    G00631587Courtesy of TESLA, INC.
  18. Release the velcro that attaches the LH 2nd row seat back cover to the LH 2nd row seat back foam
    G00631588Courtesy of TESLA, INC.
  19. Use diagonal cutters to cut the hog rings (x3) that attach the LH 2nd row seat back cover to the 2nd row seat back foam.
    NOTE: Push down on the foam to allow access to the rings.
    NOTE: Remove any excess hog ring pieces.
    G00631589Courtesy of TESLA, INC.
  20. Remove the LH 2nd row seat back cover from the seat back foam
    G00631590Courtesy of TESLA, INC.
    G00631591Courtesy of TESLA, INC.
    G00631592Courtesy of TESLA, INC.
