Back Panel -- 2nd Row Seat -- RH - Remove And Replace: Install

  1. Position the RH 2nd row seat back panel onto the seat assembly, and then install the clips (x11) and fastener back panel to the seat assembly.

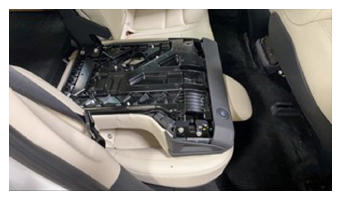

    G15083260Courtesy of TESLA, INC.

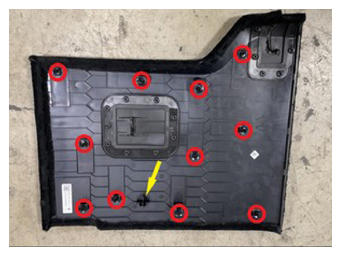

    G15083261Courtesy of TESLA, INC.
  2. Fold the RH 2nd row seat to the upright position.
    NOTE: Remove the seat cushion protection.
