Back Panel -- 2nd Row Seat -- LH - Remove And Replace: Remove

  1. Fold the LH 2nd row seat to the down position.
    NOTE: If 2nd row lower seat cushion is not present, protect the seat as required.
  2. Release the clips (x10) and fasteners that attach the LH 2nd row seat back panel to the seat assembly.
    NOTE: Slide the panel up and out of the bottom part of the seat frame.

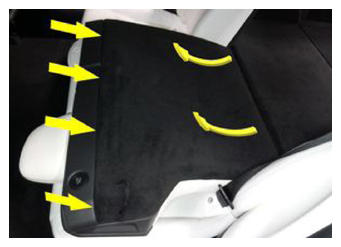

    G15083251Courtesy of TESLA, INC.

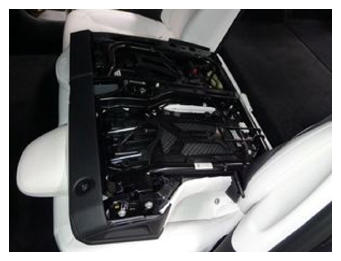

    G15083252Courtesy of TESLA, INC.

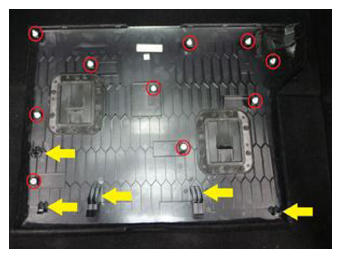

    G15083253Courtesy of TESLA, INC.
