Back Panel -- 2nd Row Seat -- LH - Remove And Replace: Install

  1. Position the LH 2nd row seat back panel into the 2nd row seat assembly, and then install the clips (x10) and fasteners that attach the panel to the assembly.
    NOTE: Slide the panel down and in at the bottom part of the seat frame.

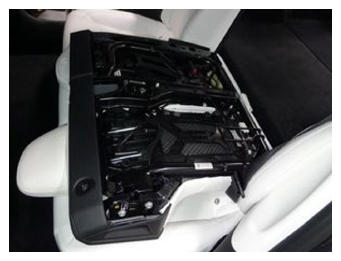

    G15083254Courtesy of TESLA, INC.

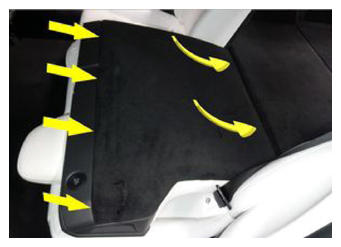

    G15083255Courtesy of TESLA, INC.
    G15083256Courtesy of TESLA, INC.
  2. Fold the LH 2nd row seat to the vertical position.
