Support Block - 2nd Row Cushion - LH - Remove And Replace: Install

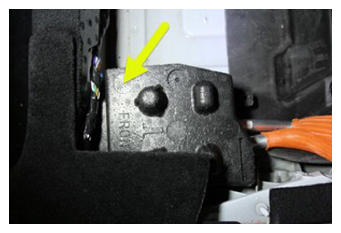

  1. Install the LH 2nd row cushion support block into the vehicle.
    G15082746Courtesy of TESLA, INC.
  2. Install the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove And Replace) .
  3. Install the LH and RH 2nd row seat outer bolsters. See Bolster - Outer - Seat - 2nd Row - LH (Remove And Replace)
