- Remove the LH and RH 2nd row seat outer bolsters. See Bolster - Outer - Seat - 2nd Row - LH (Remove And Replace) .
- Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove And Replace) .

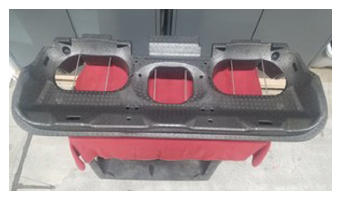

- Place the 2nd row lower seat cushion assembly upside down on a padded workbench.
 Courtesy of TESLA, INC.
|

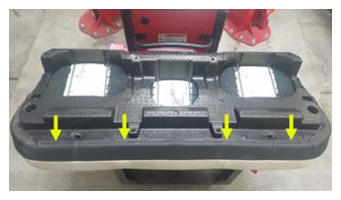

- Release the front clips (x8) that attach the upholstery to the 2nd row cushion support base.
NOTE:
Be careful not to puncture the clips with the pick.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

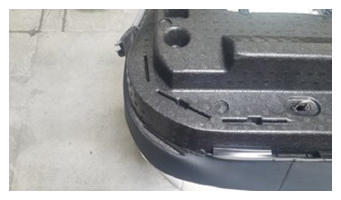

- Release the side clips (x2) that attach the upholstery to the 2nd row cushion support base.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

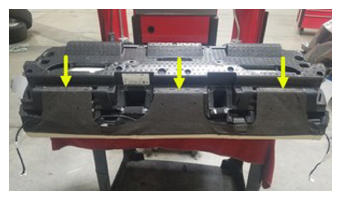

- Release the rear clips (x3) that attach the upholstery to the 2nd row cushion support base.
NOTE:
Be careful not to puncture the clips with the pick.
 Courtesy of TESLA, INC.
|

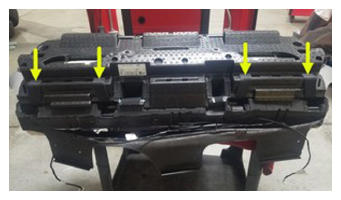

- Release the clips (x4) that attach the cushion foam to the 2nd row cushion support base.
NOTE:
Be careful not to puncture the clips with the pick.
 Courtesy of TESLA, INC.
|

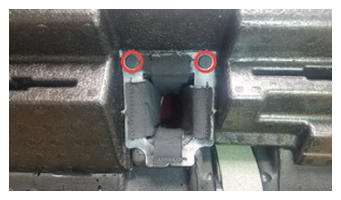

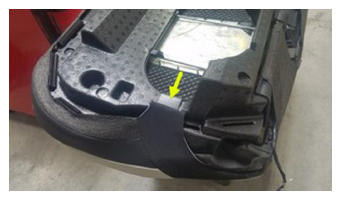

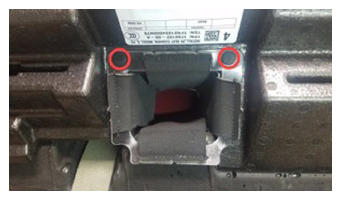

- Remove the clips (x2) that attach the RH seatbelt upholstery to the assembly.
 Courtesy of TESLA, INC.
|

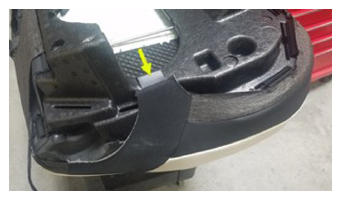

- Remove the clips (x2) that attach the LH seatbelt upholstery to the assembly.
 Courtesy of TESLA, INC.
|

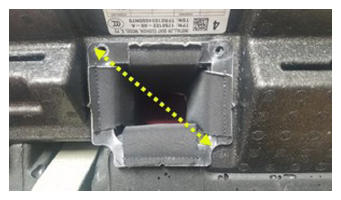

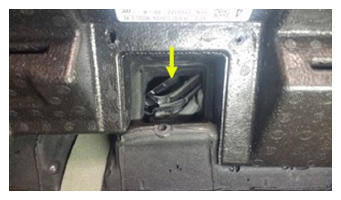

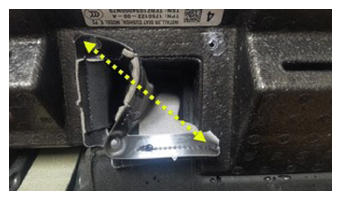

- Fold the LH seatbelt upholstery inward, and then tuck the upholstery into the 2nd row cushion foam.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

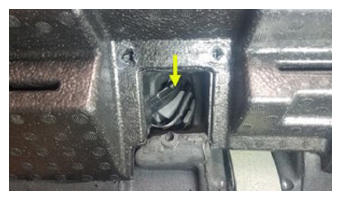

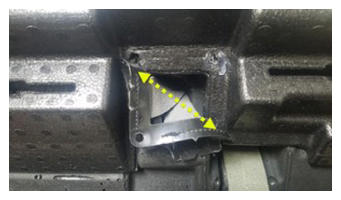

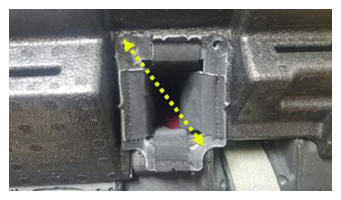

- Fold the RH seatbelt upholstery inward, and then tuck the upholstery into the 2nd row cushion foam.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

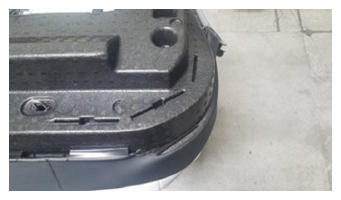

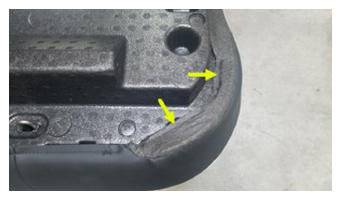

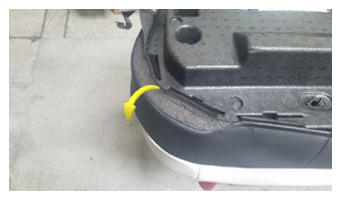

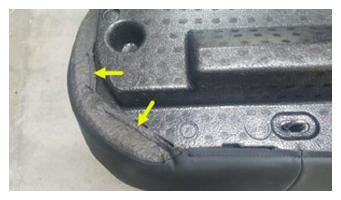

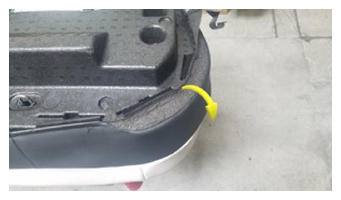

- Pull the LH and RH corners of the upholstery down and away from the 2nd row cushion support base.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

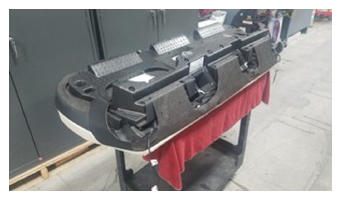

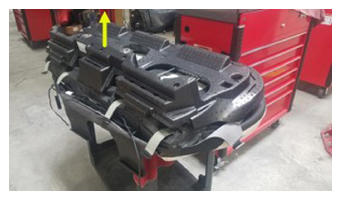

- Remove the 2nd row cushion support base from the assembly.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
