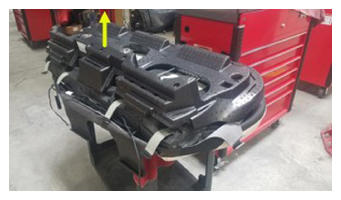

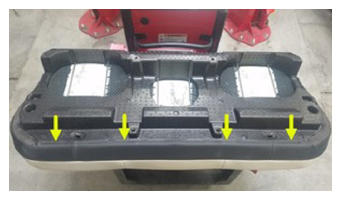

- Position the 2nd row cushion support base onto the seat assembly.
 Courtesy of TESLA, INC.
|

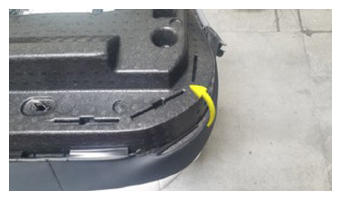

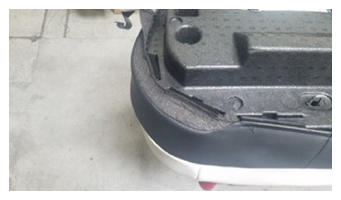

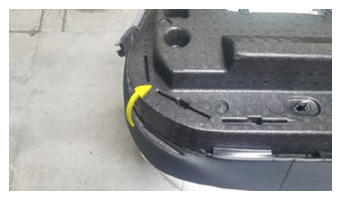

- Pull the LH and RH corners of the upholstery up and onto the 2nd row cushion support base.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

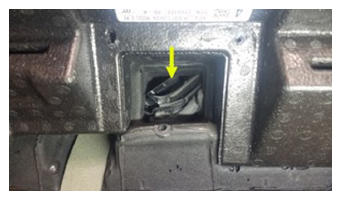

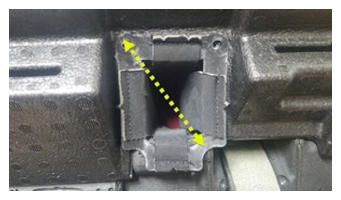

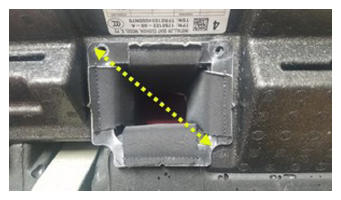

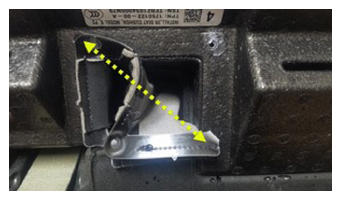

- Pull the RH seatbelt upholstery out of the 2nd row cushion foam and unfold the upholstery onto the 2nd row cushion support base.
NOTE:
Ensure the upholstery is uniform and not twisted.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

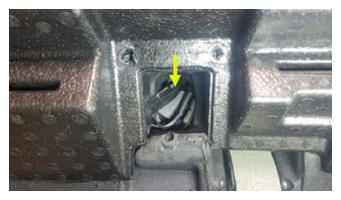

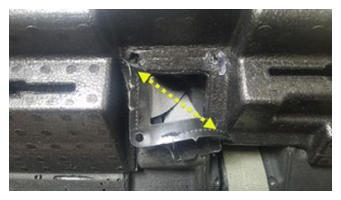

- Pull the LH seatbelt upholstery out of the 2nd row cushion foam and unfold the upholstery onto the 2nd row cushion support base.
NOTE:
Ensure the upholstery is uniform and not twisted.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

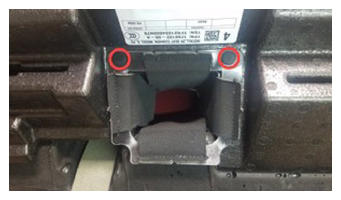

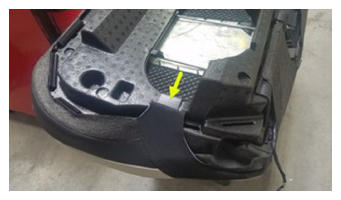

- Install the clips (x2) that attach the LH seatbelt upholstery to the assembly.
 Courtesy of TESLA, INC.
|

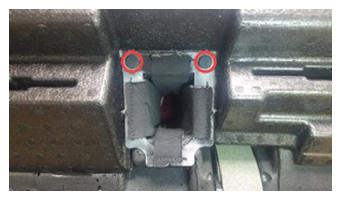

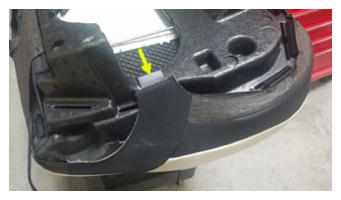

- Install the clips (x2) that attach the RH seatbelt upholstery to the assembly.
 Courtesy of TESLA, INC.
|

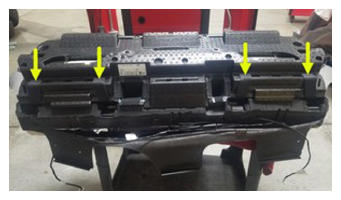

- Fasten the clips (x4) that attach the cushion foam to the 2nd row cushion support base.
 Courtesy of TESLA, INC.
|

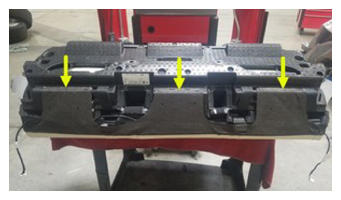

- Fasten the rear clips (x3) that attach the upholstery to the 2nd row cushion support base.
 Courtesy of TESLA, INC.
|

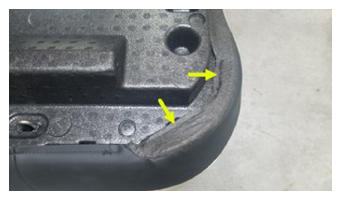

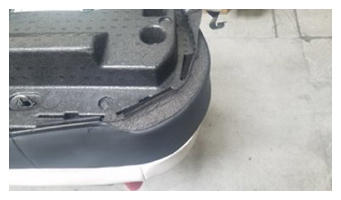

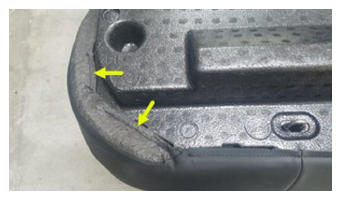

- Fasten the side clips (x2) that attach the upholstery to the 2nd row cushion support base.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Fasten the front clips (x8) that attach the upholstery to the 2nd row cushion support base.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove And Replace) .
- Install the LH and RH 2nd row seat outer bolsters. See Bolster - Outer - Seat - 2nd Row - LH (Remove And Replace)
