Substrate - Seat Back - 2nd Row - RH - Remove And Replace: Remove

  1. Remove the RH 2nd row seat microphone. See MICROPHONE - SEAT - 2ND ROW - RH (REMOVE AND REPLACE) .

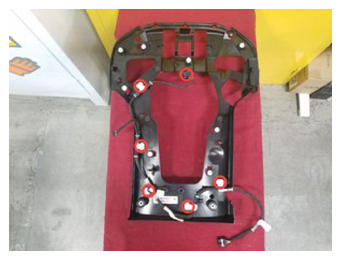

  2. Remove the clips (x6) that attach the RH 2nd row substrate harness to the RH 2nd row seat back substrate.
    G15082693Courtesy of TESLA, INC.

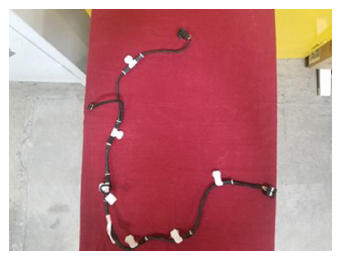

    G15082694Courtesy of TESLA, INC.

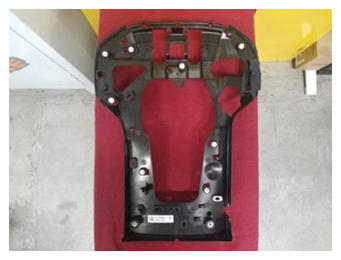

    G15082695Courtesy of TESLA, INC.
