Substrate - Seat Back - 2nd Row - RH - Remove And Replace: Install

  1. Position the RH 2nd row substrate harness onto the RH 2nd row seat back substrate, and then install the clips (x6) that attach the harness to the substrate.

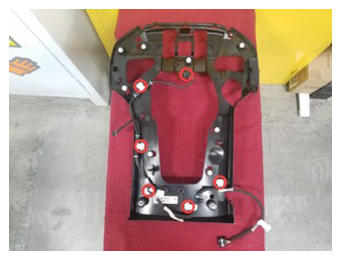

    G15082696Courtesy of TESLA, INC.

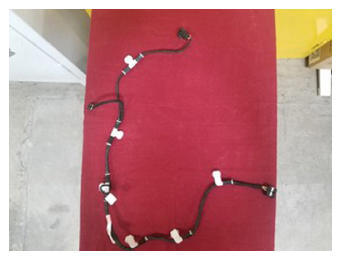

    G15082697Courtesy of TESLA, INC.

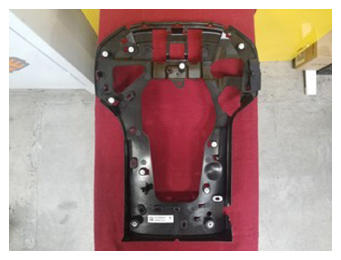

    G15082698Courtesy of TESLA, INC.
  2. Install the RH 2nd row seat microphone. See MICROPHONE - SEAT - 2ND ROW - RH (REMOVE AND REPLACE) .
