Substrate - Bolster - Inner - 2nd Row - LH - Remove And Replace: Install

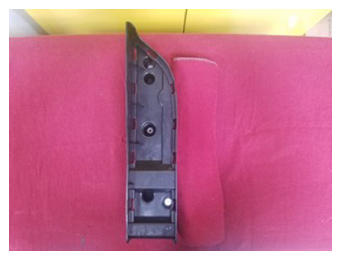

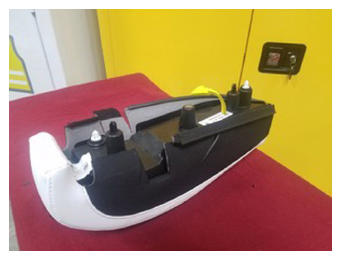

- Install the LH 2nd row seat inner bolster substrate into the bolster assembly.

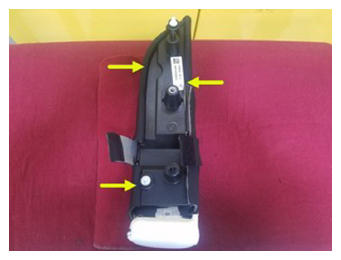

- Fasten the clips (x3) that attach the LH 2nd row bolster trim to the LH 2nd row seat inner bolster substrate.

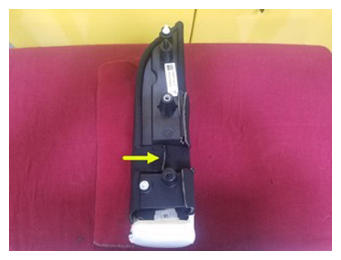

- Secure the Velcro that attaches the LH 2nd row bolster trim to the LH 2nd row seat inner bolster substrate.

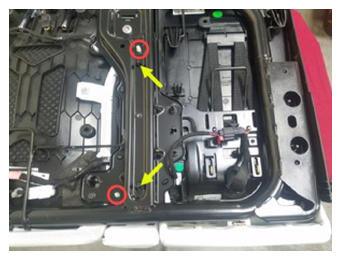

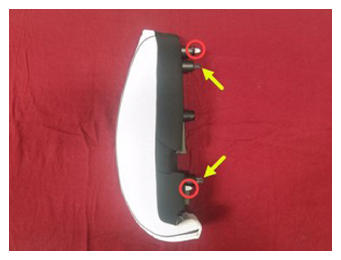

- Position the LH 2nd row bolster assembly onto the seat assembly, and then fasten the clips that attach bolster to the seat.

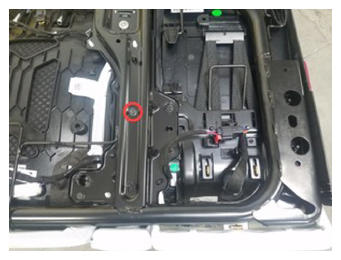

- Install the bolt that attaches the bolster assembly to the back frame.
8 N.m (5.9 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- Install the LH 2nd row seat back panel. See Back Panel - 2nd Row Seat - LH (Remove And Replace) .
