Striker - Seat Back - 2nd Row Seat - LH - Remove And Replace: Remove

  1. Open the LH front door and lower the LH front window.
  2. Open the LH rear door.
  3. Fold the LH rear seat down.
    NOTE: If the rear seat cushion is not present, protect the seat as necessary.

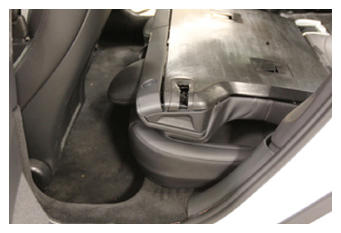

    G15082570Courtesy of TESLA, INC.
  4. Remove the rear trunk parcel shelf. See Parcel Shelf - Rear Trunk (Remove And Replace) .
  5. Remove the rear trunk load floor. See Trunk Load Floor - Rear (Remove And Replace) .
  6. Remove the trunk sill trim. See Trim - Sill - Trunk (Remove And Replace) .
  7. Remove the rear wall rear trunk trim. See Trim - Rear Trunk - Rear Wall (Remove And Replace) .
  8. Remove the LH trunk load floor bracket. See Bracket - Trunk Load Floor - LH (Remove And Replace) .
  9. Remove the trunk floor front trim. See Trim - Front - Floor - Trunk (Remove And Replace) .
  10. Remove the LH 2nd row seat outer bolster. See Bolster - Outer - Seat - 2nd Row - LH (Remove And Replace) .
  11. Remove the LH trunk side trim. See Trim - Side - Trunk - LH (Remove And Replace) .
  12. Remove the bolts (x2) that attach the seat back striker to the body, and then remove the striker from the vehicle.

    26 N.m (19.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 11 mm deep socket

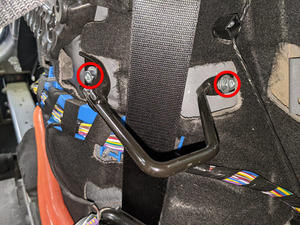

    G00631563Courtesy of TESLA, INC.
