Striker - Seat Back - 2nd Row Seat - LH - Remove And Replace: Install

  1. Install the bolts (x2) that attach the seat back striker to the body.

    26 N.m (19.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 11 mm deep socket
    G00631563Courtesy of TESLA, INC.
  2. Install the LH trunk side trim. See Trim - Side - Trunk - LH (Remove And Replace) .
  3. Install the LH 2nd row seat outer bolster. See Bolster - Outer - Seat - 2nd Row - LH (Remove And Replace) .
  4. Install the trunk floor front trim. See Trim - Front - Floor - Trunk (Remove And Replace) .
  5. Install the LH trunk load floor bracket. See Bracket - Trunk Load Floor - LH (Remove And Replace) .
  6. Install the rear wall rear trunk trim. See Trim - Rear Trunk - Rear Wall (Remove And Replace) .
  7. Install the trunk sill trim. See Trim - Sill - Trunk (Remove And Replace) .
  8. Install the rear trunk load floor. See Trunk Load Floor - Rear (Remove And Replace) .
  9. Install the rear trunk parcel shelf. See Parcel Shelf - Rear Trunk (Remove And Replace) .

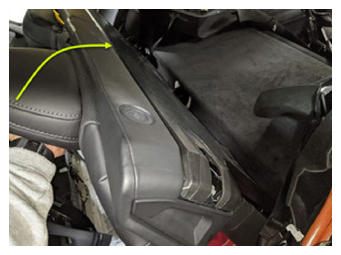

  10. Fold the LH rear seat into vertical position.
    NOTE: Remove seat cushion protection, if added.
    G15082627Courtesy of TESLA, INC.
  11. Close the LH rear door.
  12. Raise the LH front window and close the LH front door.
