Seat Cushion - Lower - 2nd Row - Remove And Replace: Remove

  1. Remove the LH and RH 2nd row seat outer bolsters. See Bolster - Outer - Seat - 2nd Row - LH (Remove And Replace)
  2. Disengage the locking clips (x2), lift up on the 2nd row lower seat cushion, disconnect the electrical connectors (x2), and then remove the lower seat cushion from the vehicle.
    G15082560Courtesy of TESLA, INC.

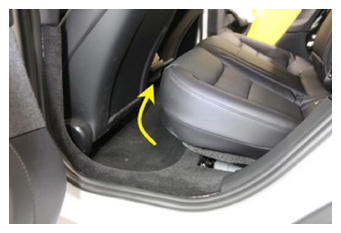

    G15082561Courtesy of TESLA, INC.

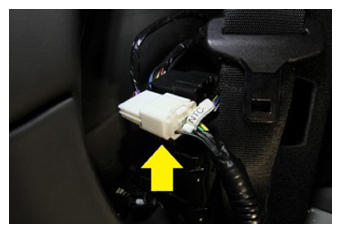

    G15082562Courtesy of TESLA, INC.
    G15082563Courtesy of TESLA, INC.

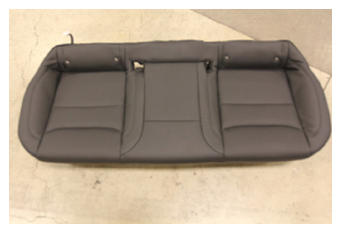

    G15082564Courtesy of TESLA, INC.
