Seat Cushion - Lower - 2nd Row - Remove And Replace: Install

  1. Position the 2nd row lower seat cushion into the vehicle, connect the electrical connectors (x2), slide the seat buckles through the cushion, and then engage the locking clips (x2).

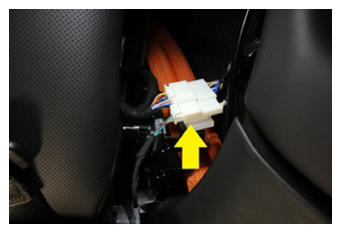

    G15082565Courtesy of TESLA, INC.

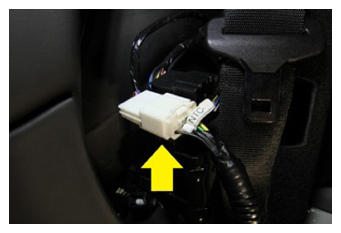

    G15082566Courtesy of TESLA, INC.

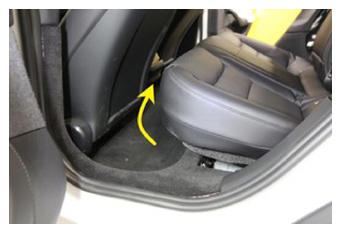

    G15082567Courtesy of TESLA, INC.

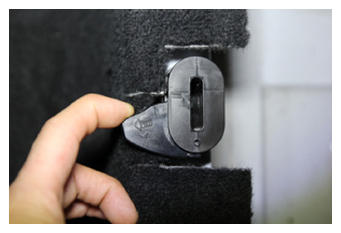

    G15082568Courtesy of TESLA, INC.
  2. Install the LH and RH 2nd row seat outer bolsters. See Bolster - Outer - Seat - 2nd Row - LH (Remove And Replace) .
