Seat Back - 2nd Row - RH - Remove And Replace: Install

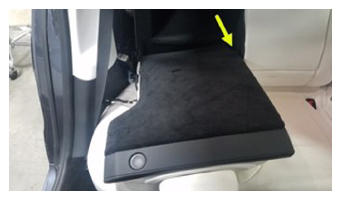

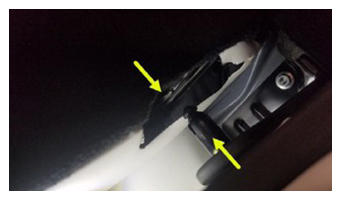

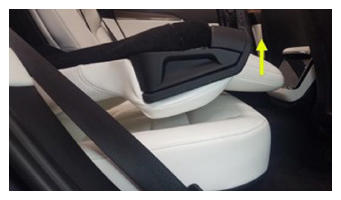

- Position the RH 2nd row seat back into the vehicle, and then secure the seat back onto the LH pivot.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

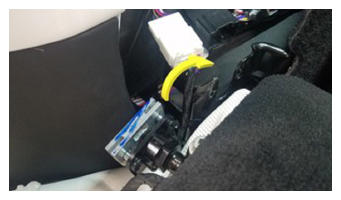

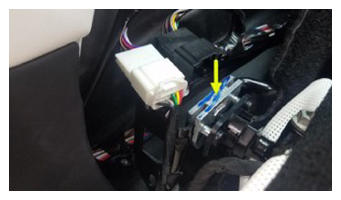

- Slightly tilt the RH 2nd row seat back upward, and then press the RH 2nd row pivot cast downward to secure it to the pivot bracket.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

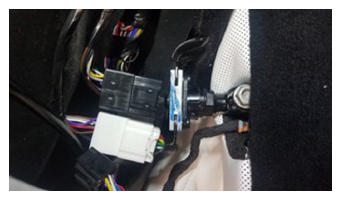

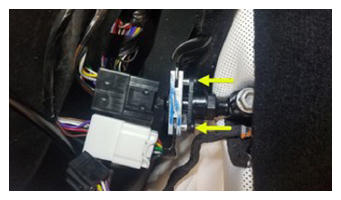

- Secure the RH 2nd row seat back pivot bushing onto the pivot bracket.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

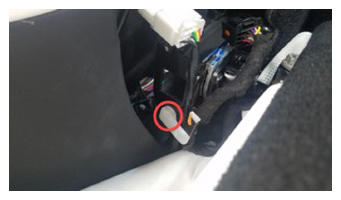

- Install the clip that attaches the RH 2nd row seat back harness to the pivot bracket.
 Courtesy of TESLA, INC.
|

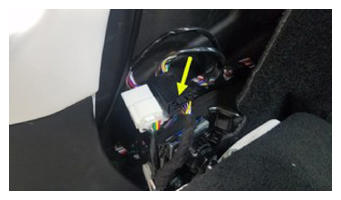

- Connect the RH 2nd row seat back harness electrical connector.
 Courtesy of TESLA, INC.
|
- Fold the RH 2nd row seat to the up position.
- Install the RH 2nd row seat side bolster. See Bolster - Outer - Seat - 2nd Row - LH (Remove And Replace)
- Move the front passenger seat to its original position.
- Raise RH windows and close the RH doors.
