Seat Back - 2nd Row - LH - Remove And Replace: Remove

  1. Open all the doors and lower all the windows.
  2. Move the front seats forward.
  3. Remove the LH and RH 2nd row seat outer bolsters. See Bolster - Outer - Seat - 2nd Row - LH (Remove And Replace)
  4. Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove And Replace) .

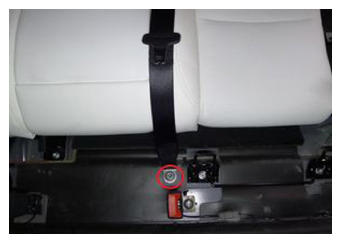

  5. Remove and discard the bolt that attaches the 2nd row center seat belt lower anchor to the vehicle, and then release the lower anchor from the vehicle.

    25 N.m (18.4 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 15 mm socket
    G15082518Courtesy of TESLA, INC.
  6. Fold the LH 2nd row seat to the down position.
    NOTE: If the seat cushion is not present, protect the seat as required.

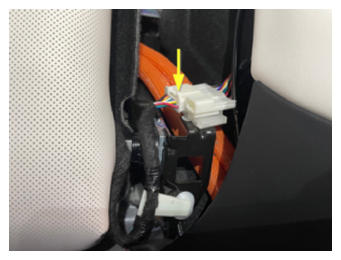

  7. Disconnect the LH 2nd row seat back harness electrical connector.
    G15082519Courtesy of TESLA, INC.

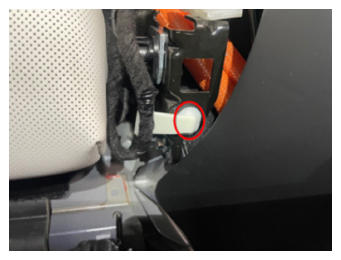

  8. Release the clip that attaches the LH 2nd row seat back harness to the pivot bracket.
    G15082520Courtesy of TESLA, INC.

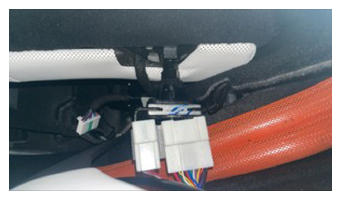

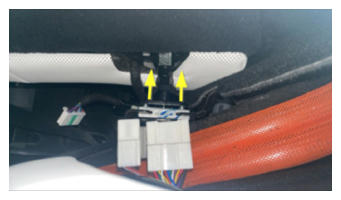

  9. Release the pivot bushing that attaches the LH 2nd row seat back assembly to the pivot bracket.
    G15082521Courtesy of TESLA, INC.
    G15082522Courtesy of TESLA, INC.

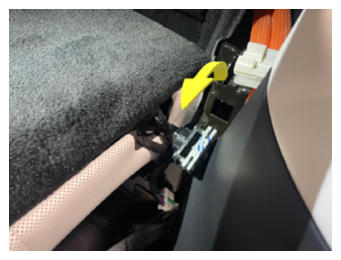

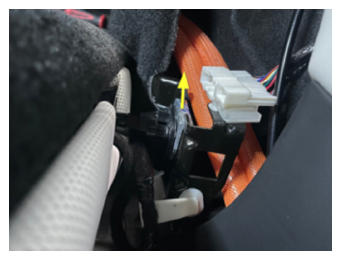

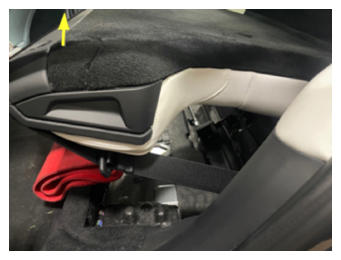

  10. Slightly tilt the LH 2nd row seat back upward, and then pull the LH 2nd row pivot cast upward to release it from the pivot bracket.
    G15082523Courtesy of TESLA, INC.
    G15082524Courtesy of TESLA, INC.
    G15082525Courtesy of TESLA, INC.

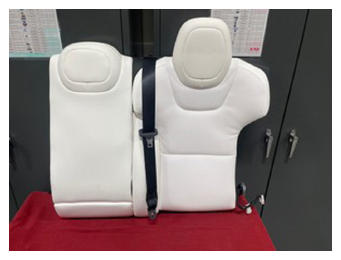

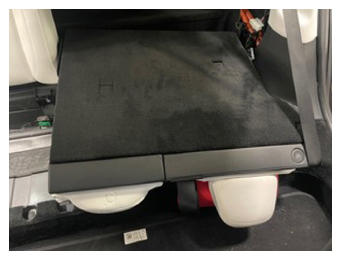

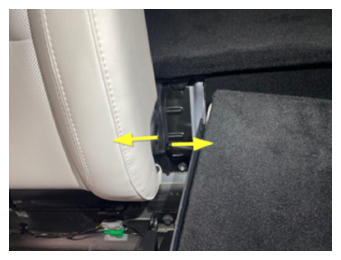

  11. Release the LH 2nd row seat back from the RH pivot, and then remove the seat back from the vehicle.
    G15082526Courtesy of TESLA, INC.
    G15082527Courtesy of TESLA, INC.
    G15082528Courtesy of TESLA, INC.
