Pivot Bushing - Seat Back - 2nd Row - RH - Remove And Replace: Remove

  1. Remove the RH 2nd row seat back from the vehicle. See SEAT BACK - 2ND ROW - RH (REMOVE AND REPLACE) .
  2. Place the RH 2nd row seat back assembly upside down on a padded workbench.
  3. Use a paint pen to mark the orientation of the pivot components.

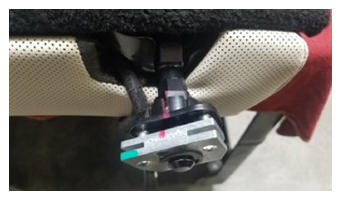

    G15082500Courtesy of TESLA, INC.
  4. Remove the E-clip that secures the pivot cast to the seat assembly.
    WARNING: Use caution to avoid personal injury or damage to vehicle interior.

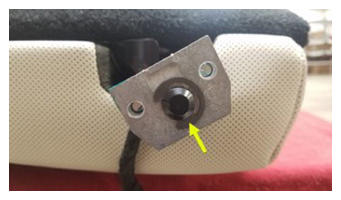

    G15082501Courtesy of TESLA, INC.
  5. Remove the pivot cast from the seat assembly.

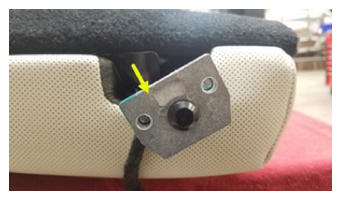

    G15082502Courtesy of TESLA, INC.
  6. Rotate the RH 2nd row seat back pivot bushing counterclockwise to release it from the RH 2nd row pivot static collar.

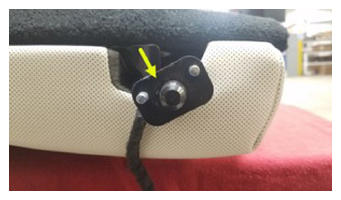

    G15082503Courtesy of TESLA, INC.

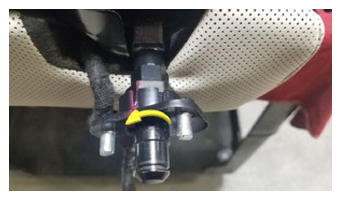

    G15082504Courtesy of TESLA, INC.

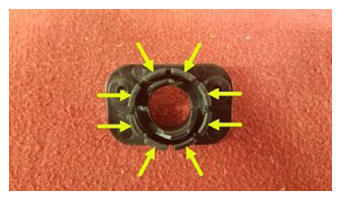

    G15082505Courtesy of TESLA, INC.
