Pivot Bushing - Seat Back - 2nd Row - LH - Remove And Replace: Install

  1. Mark the new LH 2nd row seat back pivot bushing to match orientation of the old pivot bushing.
    G15082492Courtesy of TESLA, INC.
  2. Press the LH 2nd row seat back pivot bushing onto the assembly to secure it to the LH 2nd row pivot static collar.
    G15082493Courtesy of TESLA, INC.
    G15082494Courtesy of TESLA, INC.
    G15082495Courtesy of TESLA, INC.
  3. Install the pivot cast onto the seat assembly.
    G15082496Courtesy of TESLA, INC.

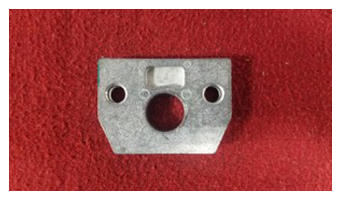

    G15082497Courtesy of TESLA, INC.
  4. Install the E-clip that attaches the pivot cast to the seat assembly.
    WARNING: Use caution to avoid personal injury or damage to vehicle interior.
    G15082498Courtesy of TESLA, INC.
  5. Install the LH 2nd row seat back. See Seat Back - 2nd Row - LH (Remove And Replace) .
