Home >> Tesla >> 2024 >> Model S Plaid >> Repair and Diagnosis (Single Page) >> Body & Frame >> Seats -- Model S >> 2nd Row Seat Assemblies and Hardware >> Cover - Side - Seat Back - 2nd Row - LH - Remove And Replace >> Install

Cover - Side - Seat Back - 2nd Row - LH - Remove And Replace: Install

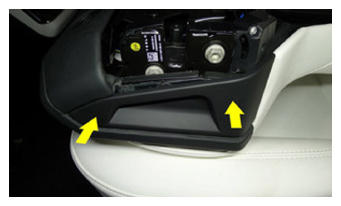

  1. Position the LH 2nd row seat back side cover onto the LH 2nd row seat back, and then install the clips (x2) that attach the cover to the seat back.
    G15082357Courtesy of TESLA, INC.
  2. Fold the LH 2nd row seat to the up position.
  3. Raise the LH rear window and close the LH rear door.
  4. Move the driver seat to the original position.
