Bracket - Pivot - Outboard - 2nd Row Seat - RH - Remove And Replace: Install

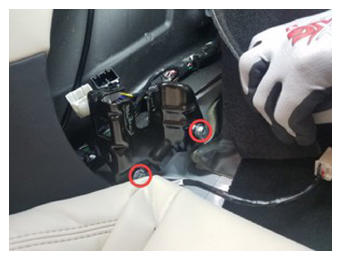

Position the RH 2nd row seat outboard pivot bracket into the vehicle, and then install the bolts (x2) that attach the bracket to the vehicle.
26 N.m (19.2 ft-lbs)

NOTE: Slightly pull the side trim to access the rear bolt.

Tip: Use of the following tool(s) is recommended:
- 11 mm socket
Courtesy of TESLA, INC.
Install the clip that attaches the RH body harness to the rear seat back pivot mounting bracket.

Courtesy of TESLA, INC.
Connect the 2nd row seat cushion heat pad electrical connector.

Courtesy of TESLA, INC.
Install the RH 2nd row seat back. See SEAT BACK - 2ND ROW - RH (REMOVE AND REPLACE) .
