Bracket - Pivot - Outboard - 2nd Row Seat - LH - Remove And Replace: Install

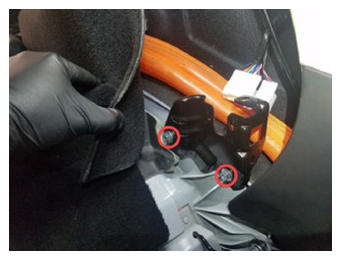

Position the LH 2nd row seat outboard pivot bracket into the vehicle, and then install the bolts (x2) that attach the bracket to the vehicle.
26 N.m (19.2 ft-lbs)

NOTE: Slightly pull the side trim to access the rear bolt.

Tip: Use of the following tool(s) is recommended:
- 11 mm socket
Courtesy of TESLA, INC.

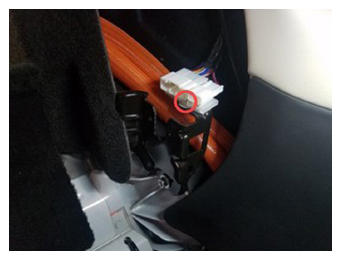

Install the LH body harness onto the LH 2nd row seat outboard pivot bracket.

Courtesy of TESLA, INC.
Install the LH 2nd row seat back. See Seat Back - 2nd Row - LH (Remove And Replace) .
