Bracket - Pivot - Inboard - 2nd Row Seat - RH - Remove And Replace: Remove
- Remove the RH 2nd row seat back panel. See Back Panel - 2nd Row Seat - RH (Remove And Replace) .
- Remove the RH 2nd row seat back. See Seat Back - 2nd Row - RH (Remove And Replace) .

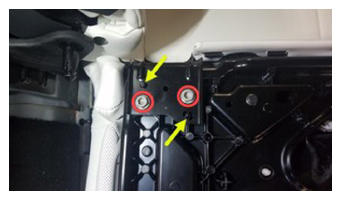

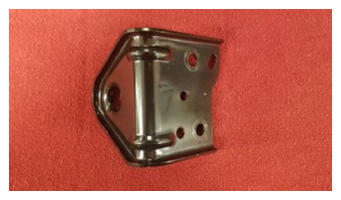

- Remove the bolts (x2) that attach the RH 2nd row seat inboard pivot bracket to the vehicle, and then remove the bracket from the vehicle.
20 N.m (14.7 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 13 mm socket
