Bolster - Outer - Seat - 2nd Row - LH - Remove And Replace: Remove
- Open the LH rear door.

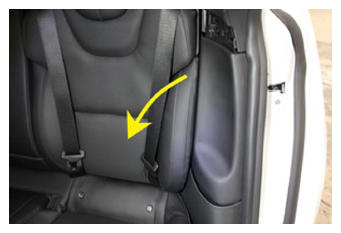

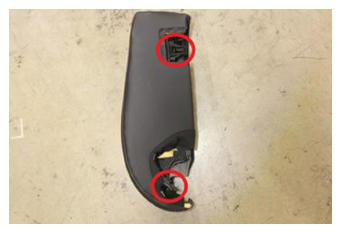

- Pull the top of the LH 2nd row seat side bolster forward to release the clip that attaches the bolster to the LH C-pillar, and then move bolster up to release the tab that attaches the bolster to the LH lower C-pillar.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove the LH 2nd row seat side bolster from the vehicle.
