Trim - C-Pillar - Upper - LH - Remove And Replace: Install

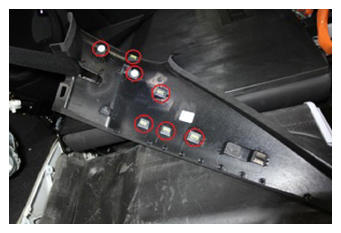

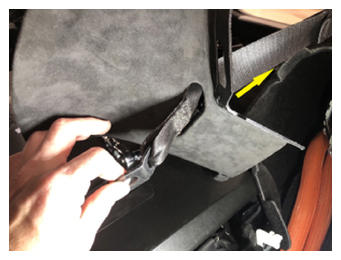

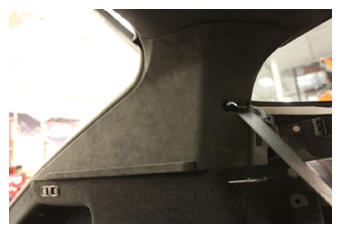

- Position the LH upper C-pillar trim to the C-pillar, feed the seat belt through the trim, and then fasten the clips (x7) that attach the trim to the vehicle.
- Install the LH mid C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove And Replace) .
- Install the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (Remove And Replace) .
- Fold the LH 2nd row seat to the up position.NOTE: Remove the seat cushion protection.

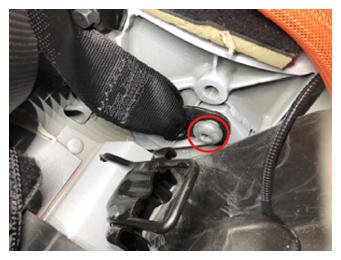

- Install a new lower bolt that attaches the LH 2nd row seat belt retractor to the vehicle.
40 N.m (29.5 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 15 mm socket
- Install the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace) .
- Install the LH and RH side bolster trims. See Bolster - Outer - Seat - 2nd Row - LH (Remove and Replace) .
- Install the rear trunk parcel shelf. See Parcel Shelf - Rear Trunk (Remove And Replace) .
