Bezel - Seatbelt - C-Pillar - LH - Remove And Replace: Install

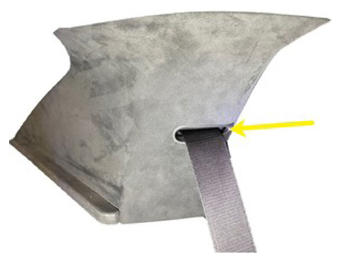

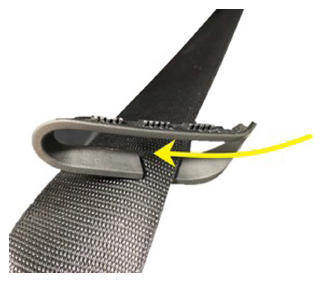

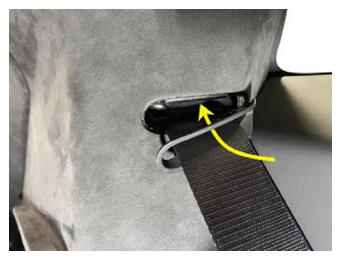

Install the bezel through the seatbelt.

Courtesy of TESLA, INC.

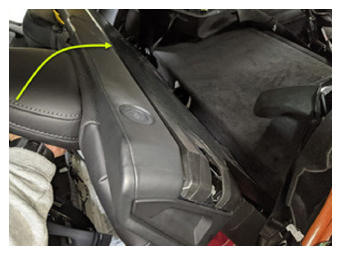

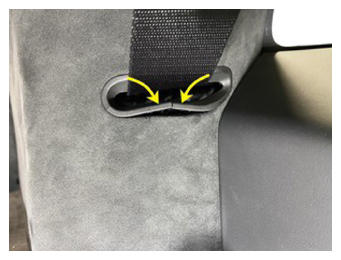

Install the bezel onto the upper C-pillar trim.

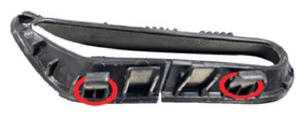

NOTE: Align the upper portion of bezel onto the upper C-pillar trim, and then secure it in place with tabs (x2).

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

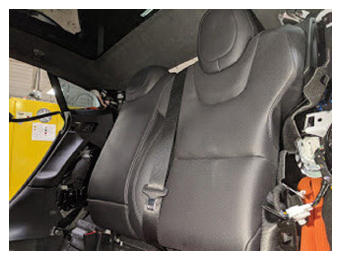

Fold the 2nd row 60 seat into vertical position.
NOTE: Remove seat cushion protection, if added earlier in this procedure.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Raise the LH rear window and the LH rear door.
