Trim - Rear Trunk - Rear Wall - Remove And Replace: Install

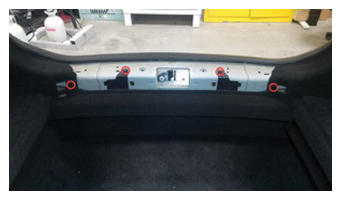

  1. Position the rear wall rear trunk trim to the vehicle, and then install the clips (x4) that attach the trim to the vehicle.
    G15084785Courtesy of TESLA, INC.
  2. Position the rear trunk sill panel to the vehicle, and then install the clips (x6) that attach the trunk sill panel to the vehicle.
    G15084786Courtesy of TESLA, INC.
  3. Install the rear trunk load floor. See Trunk Load Floor - Rear (Remove And Replace) .
