Carpet - Rear Trunk (5 Seat) - Remove And Replace: Install

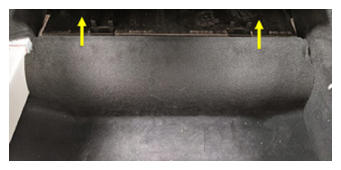

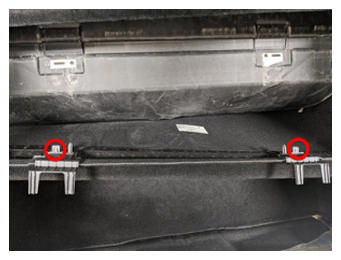

  1. Secure the clips (x2) that attach the rear trunk carpet to the vehicle.
    G15084769Courtesy of TESLA, INC.
    G15084770Courtesy of TESLA, INC.
  2. Install the trunk floor front trim. See Trim - Front - Floor - Trunk (Remove And Replace) .
  3. Install the RH trunk load floor bracket. See Bracket - Trunk Load Floor - RH (Remove And Replace) .
  4. Remove the LH trunk load floor bracket. See Bracket - Trunk Load Floor - LH (Remove And Replace) .
  5. Install the rear trunk trim. See Trim - Rear Trunk - Rear Wall (Remove And Replace) .
  6. Install the rear trunk load floor. See Trunk Load Floor - Rear (Remove And Replace) .
  7. Install the rear trunk parcel shelf. See Parcel Shelf - Rear Trunk (Remove And Replace) .
