Insulator - Wheelhouse - Rear - LH - Remove And Replace: Install

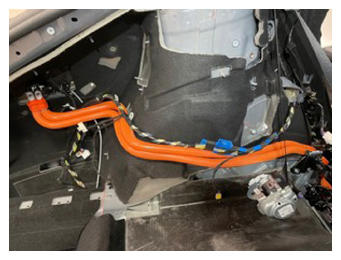

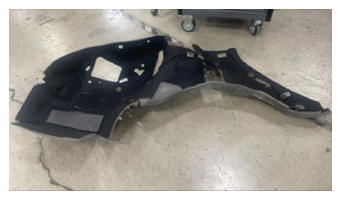

  1. Install the LH rear wheelhouse insulator.
    NOTE: Hold the charge port electrical harnesses against the body during installation of the insulation.
    G15085669Courtesy of TESLA, INC.
    G15085670Courtesy of TESLA, INC.

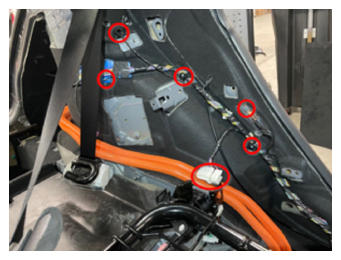

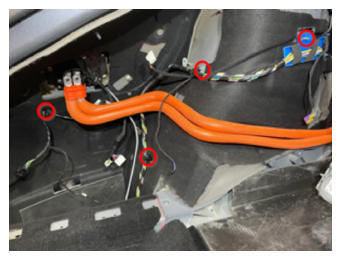

  2. Install the clips (x9) and bolt that attach the LH body wiring harness onto the body.

    9 N.m (6.6 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15085671Courtesy of TESLA, INC.
    G15085672Courtesy of TESLA, INC.
    G15085673Courtesy of TESLA, INC.

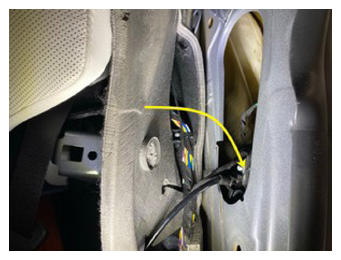

  3. Install the LH rear door latch through the wheelhouse insulator.
    G15085674Courtesy of TESLA, INC.

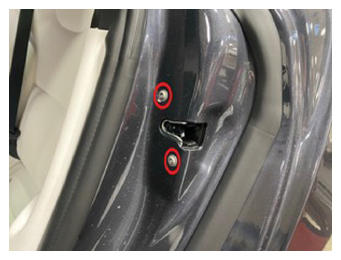

  4. Install new bolts (x2) that attach the LH rear door latch assembly to the body.

    10 N.m (7.4 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T30 socket
    NOTE: Install new patched bolts.
    G15085675Courtesy of TESLA, INC.
  5. Install the LH C-pillar latch closeout panel. See Closeout Panel - Latch - C-Pillar - LH (Remove and Replace) .
  6. Install the LH 2nd row seat back striker. See Striker - Seat Back - 2nd Row Seat - LH (Remove and Replace) .

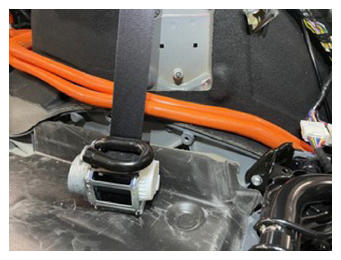

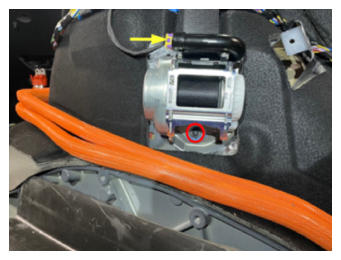

  7. Connect the electrical connector, and then install the nut that attaches LH rear seatbelt retractor to the body.
    NOTE: 15 mm. Torque 40 N.m.
    G15085676Courtesy of TESLA, INC.
    G15085677Courtesy of TESLA, INC.

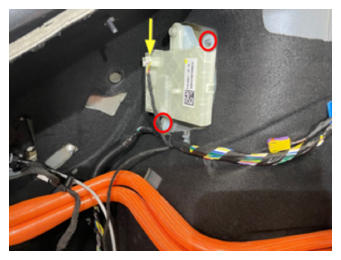

  8. Install the charge port ECU with ECU bracket, and then connect the electrical connector.
    NOTE: Stud clips (x2)
    G15085678Courtesy of TESLA, INC.
    G15085679Courtesy of TESLA, INC.
  9. Install the LH C-pillar support bracket. See Bracket - Support - C-Pillar - LH (Remove And Replace) .

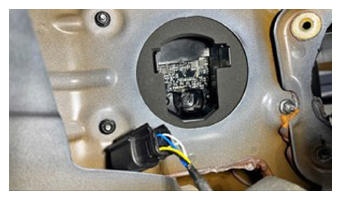

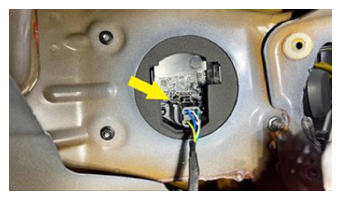

  10. Connect the LH taillight electrical connector.
    G15085680Courtesy of TESLA, INC.
    G15085681Courtesy of TESLA, INC.

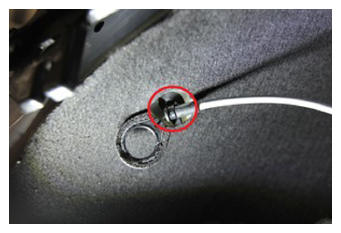

  11. Install the clip that attaches the manual release cable.
    G15085682Courtesy of TESLA, INC.

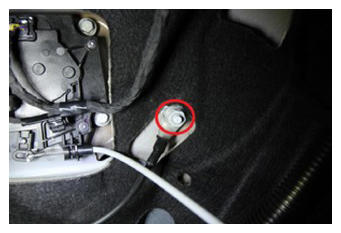

  12. Install the charge port harness ground.

    9 N.m (6.6 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 13 mm socket
    G15085683Courtesy of TESLA, INC.

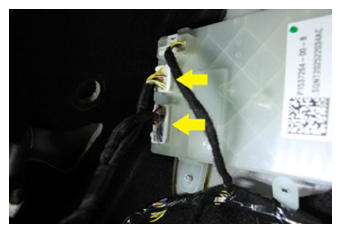

  13. Connect the charge port ECU electrical connectors (x2).
    G15085684Courtesy of TESLA, INC.

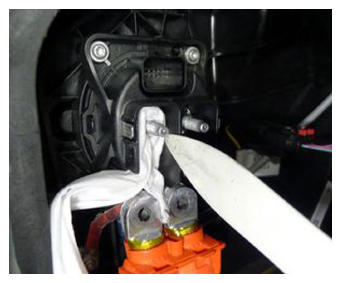

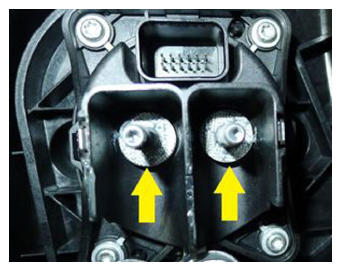

  14. Clean the charge port busbar contact surface of residual Penetrox with an Isopropyl Alcohol (IPA) wipe.
    NOTE: Use a plastic trim tool to push the IPA wipe down between the plastic divider. Allow 1 minute for the alcohol to dry before continuing.
    G15085685Courtesy of TESLA, INC.
    G15085686Courtesy of TESLA, INC.

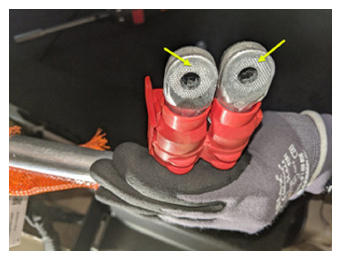

  15. Clean the charge port busbar contact surface of residual Penetrox with an IPA wipe.
    NOTE: Allow 1 minute for the alcohol to dry before continuing.
    G15085687Courtesy of TESLA, INC.

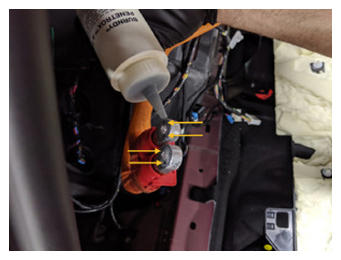

  16. Apply 2 drops (approximately 5 mm in diameter) of Penetrox A-13 to both sides of the busbar leads.
    NOTE: Spread evenly to verify the contact surface is fully covered.
    G15085688Courtesy of TESLA, INC.

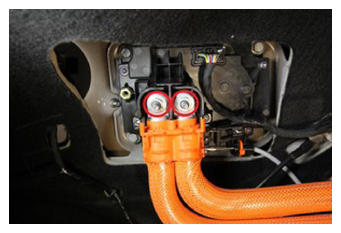

  17. Install the nuts (x2) that attach the charge port busbar leads to charge port assembly.

    9 N.m (6.6 ft-lbs)

    NOTE: Use of the following tool(s) is recommended:
    • 11 mm socket
    NOTE: Nuts have captured washers. If excessive force is required to seat the busbars, they may have been bent. Inspect for damage and replace the charge port assembly if necessary.
    G15085689Courtesy of TESLA, INC.
  18. Inspect HV insulating gloves
    NOTE: Check gloves for damage prior to use. Refer to service document TN-15-92-003 for information on inspecting HV gloves.
  19. Put on HV insulating gloves and leather over gloves.

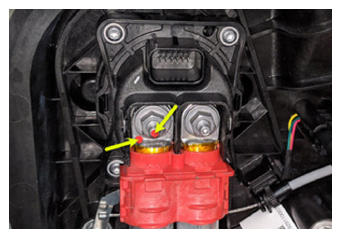

  20. Perform Hioki resistance test at each HV joint from HV busbar lead to charge port stud.
    NOTE: When using Hioki tester, verify the meter has been properly adjusted and set prior to usage.
    NOTE: The acceptable resistance is between 0.050 mΩ (50 μΩ) and 0.270 mΩ (270 μΩ). If the resistance is greater than 0.270 mΩ (270 μΩ), stop work and escalate the Toolbox session. If the resistance is lower than 0.050 mΩ (50 μΩ), reposition the probes and measure again. If the resistance is repeatedly between 0.00 mΩ and 0.050 mΩ (50 μΩ), hioki test passed, proceed to next step.
    G15085690Courtesy of TESLA, INC.
  21. Remove the leather glove protectors and HV insulating gloves
  22. Install the charge port to HV battery busbar safety cap. See Safety Cap - Busbar - Charge Port to HV Battery (Remove and Replace) .
  23. Install the LH trunk side trim. See Trim - Side - Trunk - LH (Remove And Replace) .

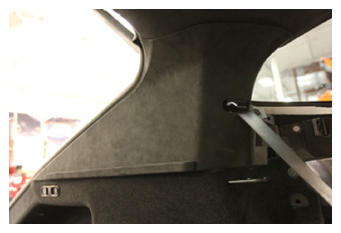

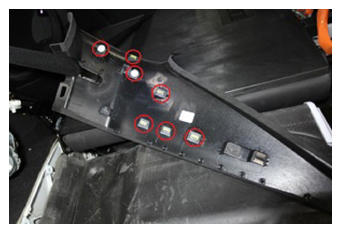

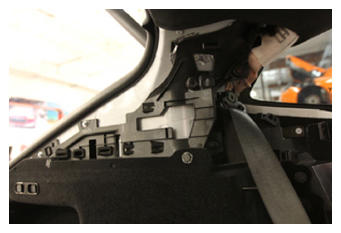

  24. Install the clips (x7) that attach the LH upper C-pillar trim to the body.
    NOTE: Replace any damaged clips.
    G15085691Courtesy of TESLA, INC.
    G15085692Courtesy of TESLA, INC.
    G15085693Courtesy of TESLA, INC.

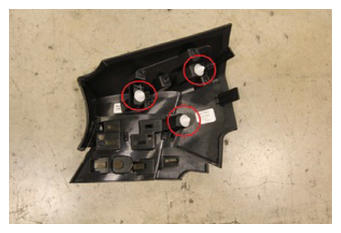

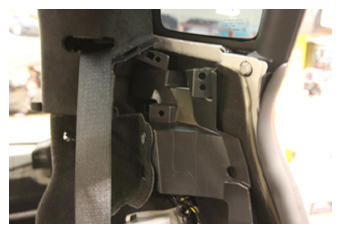

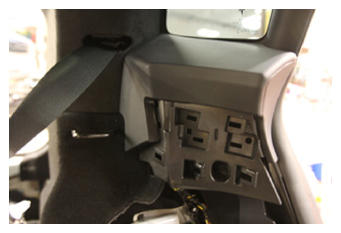

  25. Secure the clips (3) that attach the LH mid C-pillar trim to the body.
    NOTE: Replace any damaged clips
    G15085694Courtesy of TESLA, INC.
    G15085695Courtesy of TESLA, INC.
    G15085696Courtesy of TESLA, INC.

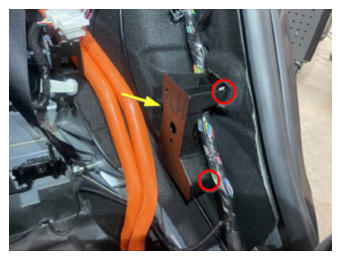

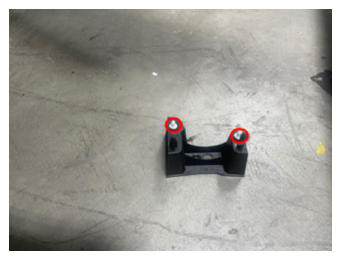

  26. Install the LH lower c-pillar interior trim bracket.
    NOTE: Clips (x2)
    G15085697Courtesy of TESLA, INC.
    G15085698Courtesy of TESLA, INC.

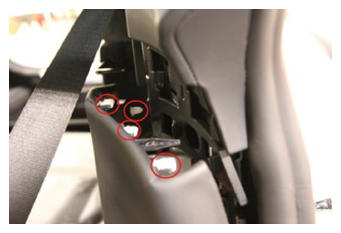

  27. Secure the clips (x4) that attach the LH lower C-pillar trim to the LH mid C-pillar trim.
    G15085699Courtesy of TESLA, INC.
  28. Install the LH and RH 2nd row seat outer bolsters. See Bolster - Outer - Seat - 2nd Row - LH (Remove and Replace) .
  29. Install the trunk floor front trim. See Trim - Front - Floor - Trunk (Remove And Replace) .
  30. Install LH trunk load floor bracket. See Bracket - Trunk Load Floor - LH (Remove And Replace) .
  31. Install the rear wall rear trunk trim. See Trim - Rear Trunk - Rear Wall (Remove And Replace) .
  32. Install the rear trunk load floor. See Trunk Load Floor - Rear (Remove And Replace) .
  33. Install the rear trunk parcel shelf. See Parcel Shelf - Rear Trunk (Remove And Replace) .
  34. Raise the LH 2nd row seat back (60 portion) into the upright and locked position.
  35. Reconnect LV power. See LV Power (Disconnect and Connect) .
  36. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  37. Raise all windows and close all doors.
