Underhood Apron - Rear - Remove And Replace: Remove

  1. Open the hood.

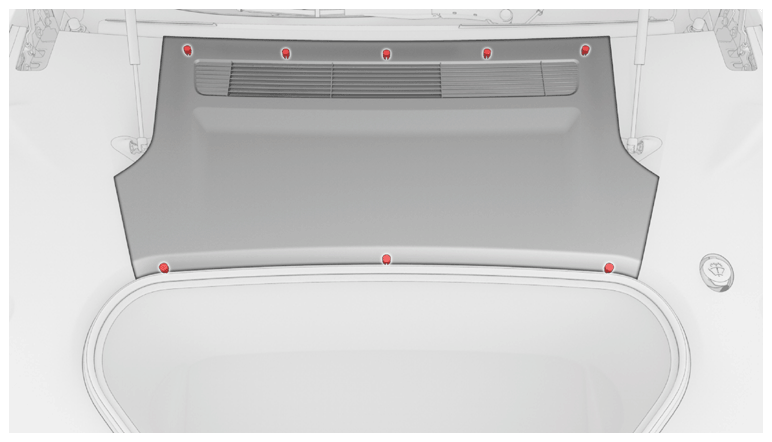

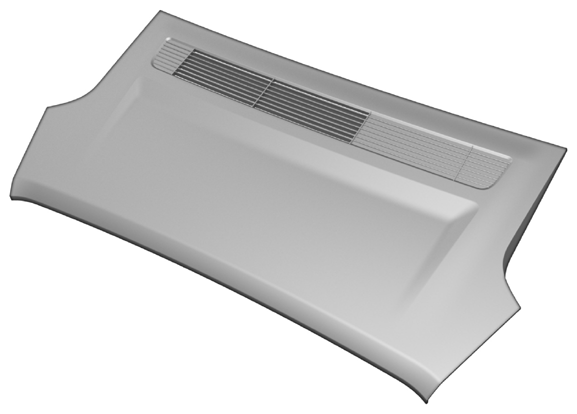

  2. Release the clips (x8) that attach the rear underhood apron to the vehicle, and then remove the apron from the vehicle.
    G15081407Courtesy of TESLA, INC.
    G15081408Courtesy of TESLA, INC.
