Underhood Apron - LH - Remove And Replace: Remove

  1. Remove the rear underhood apron. See Underhood Apron - Rear (Remove And Replace) .

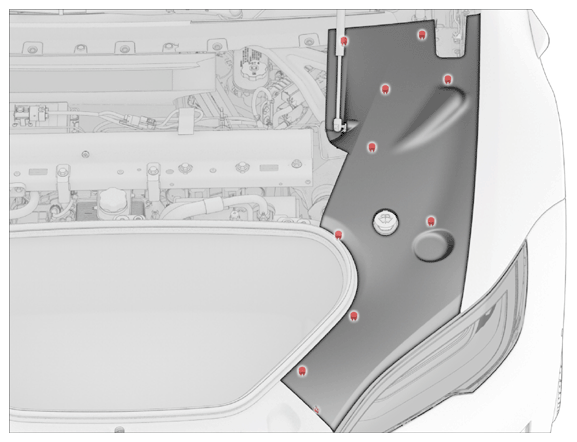

  2. Release the clips (x10) that attach the LH underhood apron to the vehicle, and then remove the apron from the vehicle.
    G15081404Courtesy of TESLA, INC.
