Underhood Apron - LH - Remove And Replace: Install

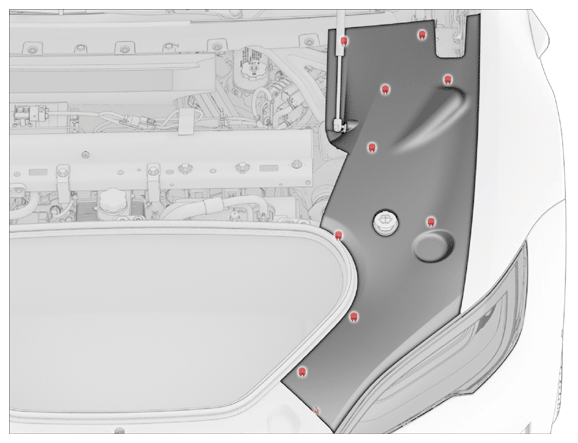

  1. Install the LH underhood apron to the vehicle, and then fasten the clips (x10) that attach the apron to the vehicle.
    G15081405Courtesy of TESLA, INC.
  2. Install the rear underhood apron. See Underhood Apron - Rear (Remove And Replace) .
