Seal - Hood - Remove And Replace: Remove

  1. Open LH front door
  2. Remove the rear underhood apron. See Underhood Apron - Rear (Remove And Replace) .
  3. Remove the front underhood apron. See Underhood Apron - Front (Remove And Replace) .
  4. Remove the hood seal from the vehicle.
    NOTE: Note orientation of the seal and any marking to allow re-installation into original position.

    Tip: Use of the following tool(s) is recommended:

    • Plastic Trim Tool

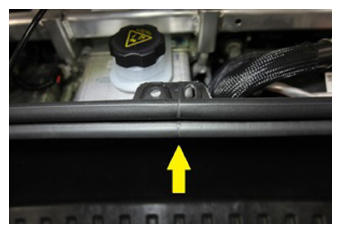

    G15080510Courtesy of TESLA, INC.

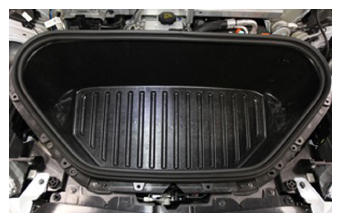

    G15080509Courtesy of TESLA, INC.

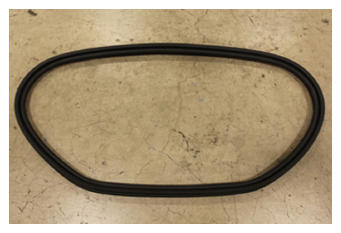

    G15080507Courtesy of TESLA, INC.
