Hinge - Door - Rear - Upper- LH - Remove And Replace: Remove

Open the LH doors and lower the LH windows.

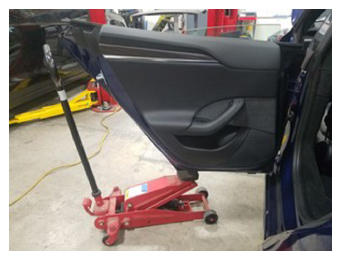

Use a floor jack to support the LH rear door.
NOTE: Protect painted surface with a soft object.

Courtesy of TESLA, INC.

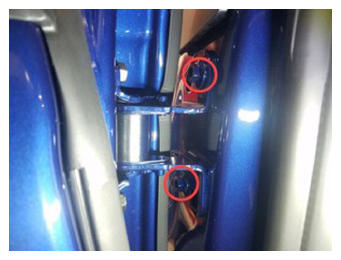

Remove the bolts (x2) that attach the LH upper rear door hinge to the door assembly.
31 N.m (22.9 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 13 mm ratcheting combination flex head wrench
Courtesy of TESLA, INC.

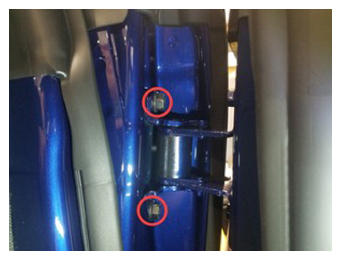

Remove the bolts (x2) that attach the LH upper rear door hinge to the vehicle.
52 N.m (38.3 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 13 mm ratcheting combination flex head wrench
Courtesy of TESLA, INC.

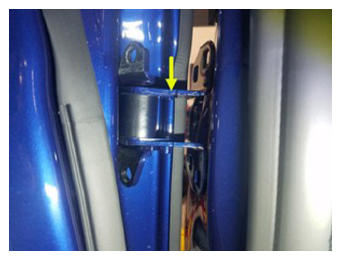

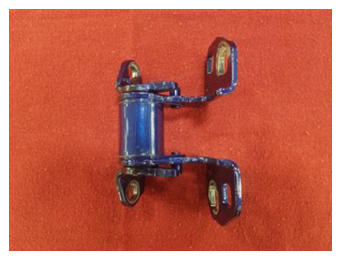

Remove the LH upper rear door upper hinge from the vehicle.
NOTE: Raise the door support as necessary to provide clearance.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
