Hinge - Door - Rear - Lower - LH - Remove And Replace: Install

Position the LH lower rear door hinge into the vehicle.

Courtesy of TESLA, INC.

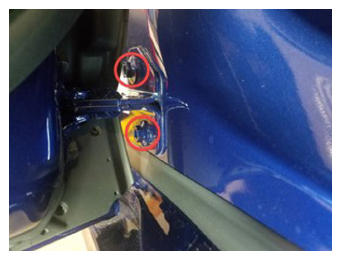

Partially close the LH rear door, and then install the bolts (x2) that attach the LH lower rear door hinge to the vehicle.
Torque 52 N.m

Tip: Use of the following tool(s) is recommended:
- 13 mm ratcheting combination flex head wrench
Courtesy of TESLA, INC.

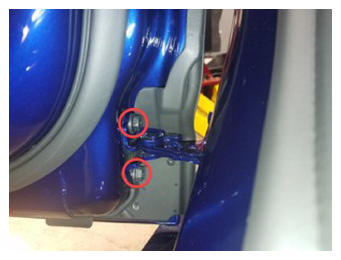

Install the bolts (x2) that attach the LH lower rear door hinge to the door assembly.
Torque 31 N.m

Tip: Use of the following tool(s) is recommended:
- 13 mm ratcheting combination flex head wrench
Courtesy of TESLA, INC.
Remove the floor jack from the LH rear door.
Close the LH doors.

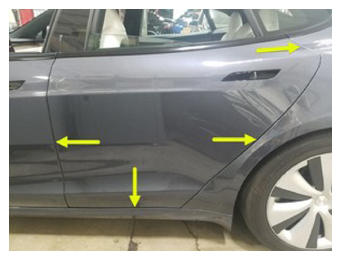

Check the gap and flushness between the LH rear door and surrounding components.
NOTE: Measure spots (x4) labeled in example image. Refer to CVIS for current specifications.

Courtesy of TESLA, INC.
Open the LH doors.

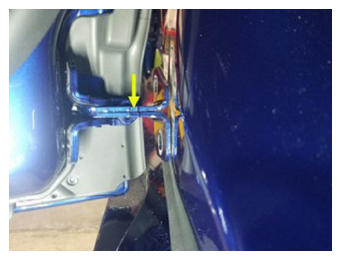

Use IPA wipes to clean the body side lower hinge bolts.

Courtesy of TESLA, INC.
Apply touch up paint to the body side lower hinge bolts as needed.
Raise the LH windows and close the LH doors.
