Hinge - Door - Front - Upper - LH - Remove And Replace: Remove

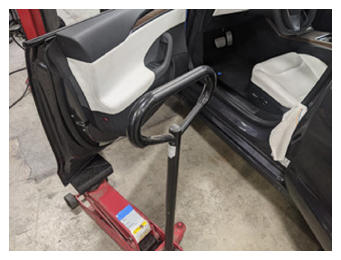

Use a floor jack to support the LH front door.
CAUTION: Protect painted surfaces with a soft surface.

Courtesy of TESLA, INC.

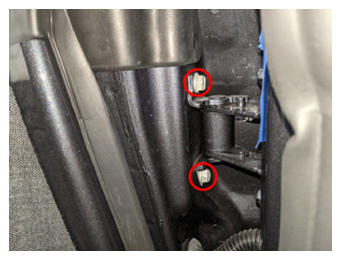

Remove the bolts that attach the LH upper front door hinge to the door assembly.
Tip: Use of the following tool(s) is recommended:
- 13 mm combination wrench
Courtesy of TESLA, INC.

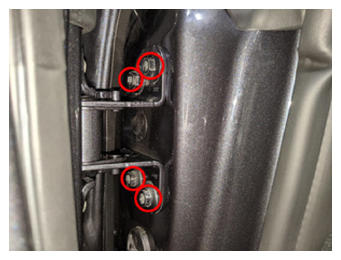

Remove the bolts that attach the LH upper front door hinge to the body.
Tip: Use of the following tool(s) is recommended:
- 13 mm combination wrench
Courtesy of TESLA, INC.

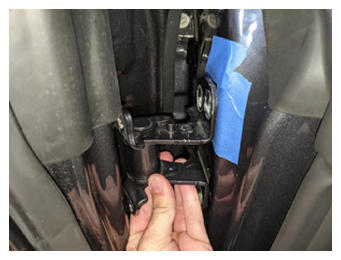

Remove the LH upper front door hinge from the vehicle.

Courtesy of TESLA, INC.
