Bumper Beam - Rear - Remove And Replace: Install

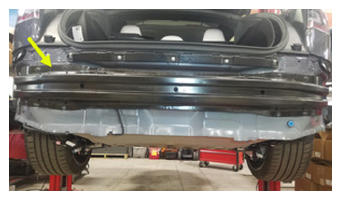

Position the rear bumper beam onto the vehicle.

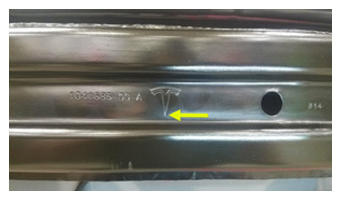

NOTE: Verify the "T" stamp is pointing downward to avoid fascia fitment issues.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

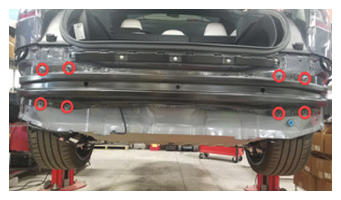

Install the nuts that attach the rear bumper beam to the body.
Torque 60 N.m

Tip: Use of the following tool(s) is recommended:
- 15 mm deep socket
- Flex head ratchet/flex head torque wrench
- 3 in extension
Courtesy of TESLA, INC.
Install the rear fascia assembly. See Fascia Assembly - Rear (Remove And Install) .
