Wheel Arch Liner - Front - LH - Remove And Replace: Install

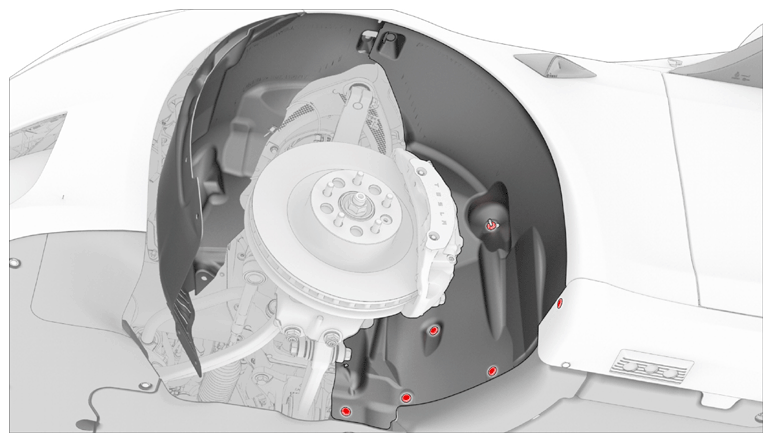

  1. Install the LH front wheel arch liner into the LH front wheel arch, and then fasten the clips (x6) that attach the rear portion of the wheel arch liner to the body.
    G15081078Courtesy of TESLA, INC.

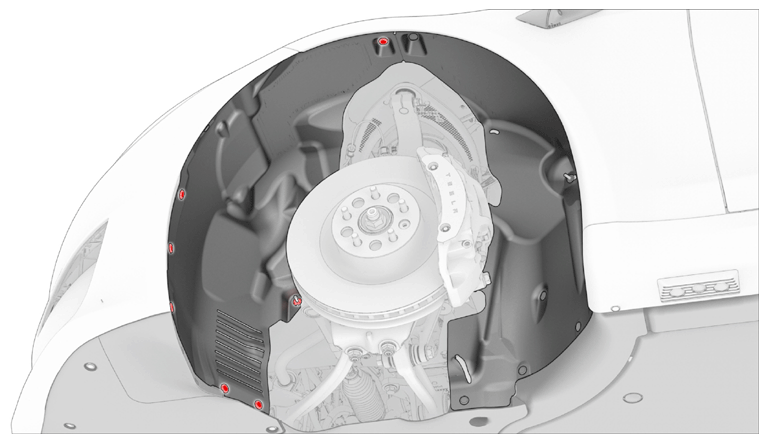

  2. Install the clips (x7) that attach the front portion of the LH front wheel arch liner to the body.
    G15081079Courtesy of TESLA, INC.
  3. Install the LH front wheel. See Wheel (Remove and Install) .
  4. Remove the vehicle from the 2-post lift. See Raise Vehicle - 2 Post Lift .
