Panel - Cowl Screen - Remove And Replace: Remove

  1. Remove the rear underhood apron. See Underhood Apron - Rear (Remove And Replace) .
  2. Remove the LH and RH underhood aprons. See Underhood Apron - LH (Remove And Replace) .
  3. Remove the LH and RH wiper arms. See Wiper Arm - LH (Remove and Replace) .
  4. Remove the LH and RH shock tower covers. See Cover - Shock Tower - LH (Remove And Replace) .

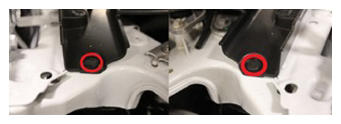

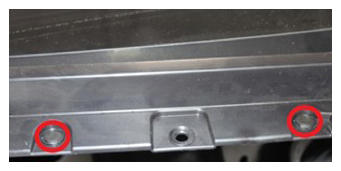

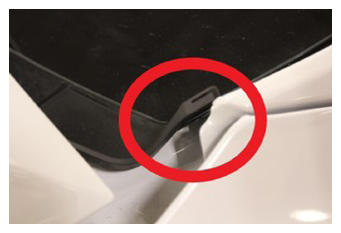

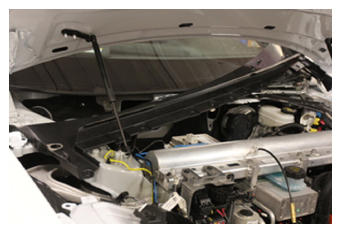

  5. Remove the clips (x4), and then release the end tabs (x2) that attach the cowl screen panel to the vehicle.
    G15081390Courtesy of TESLA, INC.
    G15081391Courtesy of TESLA, INC.
    G15081392Courtesy of TESLA, INC.
    G15081393Courtesy of TESLA, INC.
