Scuff Plate - Rocker Panel - LH - Remove And Replace: Remove

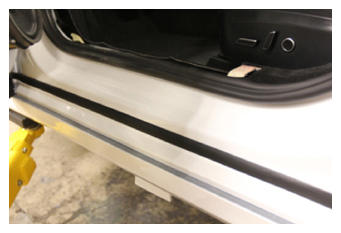

  1. Carefully peel the LH body side secondary seal from the front of the LH rocker panel scuff plate, along its length, to the rear.
    G15081354Courtesy of TESLA, INC.

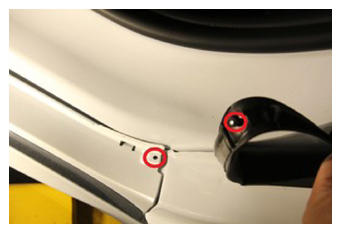

  2. Release the clip that attaches the LH body side secondary seal to the rear of the LH rocker panel scuff plate.
    NOTE: Do not completely remove the seal from the body.
    G15081355Courtesy of TESLA, INC.

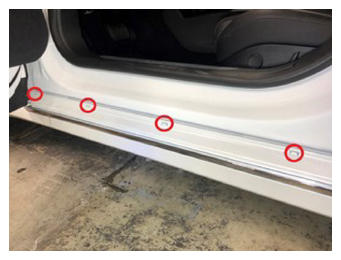

  3. Release the upper tabs (x7), and then the bottom clips (x7) that attach the LH rocker panel scuff plate to the LH rocker panel.
    G15081356Courtesy of TESLA, INC.

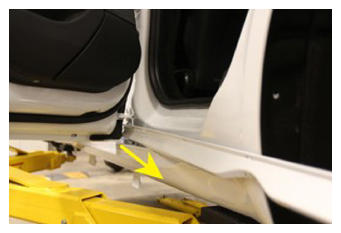

  4. Slide the LH rocker panel scuff plate rearward, out from between the LH rear door and body, and then remove the scuff plate from the vehicle.
    G15081357Courtesy of TESLA, INC.
