Bracket - Applique (Liftgate) - Remove And Replace: Install

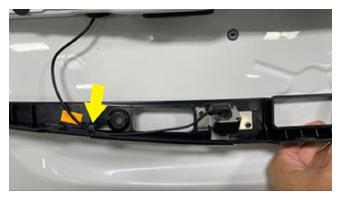

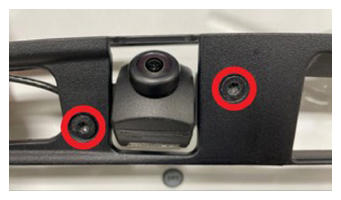

Install new bolts (x2) that attach the rear facing camera to the liftgate applique bracket, and then secure the camera electrical harness with hook.
1 N.m (.7 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T20 socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

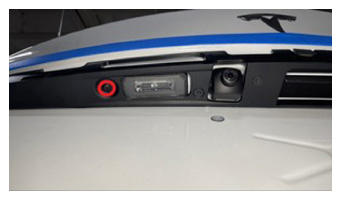

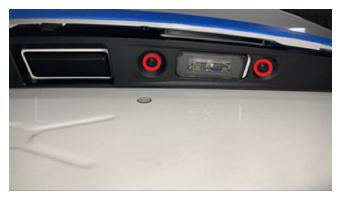

Secure the liftgate applique bracket, and then install the fasteners (x3).
2 N.m (1.5 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T20 socket

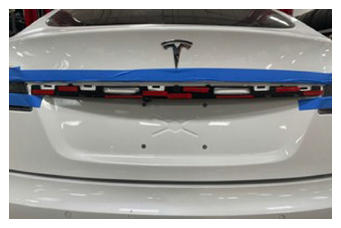

NOTE: Apply double sided tape, if needed.

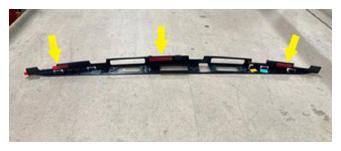

NOTE: Peel off the red tape, as needed.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the liftgate applique. See Applique - Liftgate (Remove And Replace) .
