Glass - Roof - Fixed - Remove And Replace: Install

  1. Attach suction cups to the new fixed roof glass.

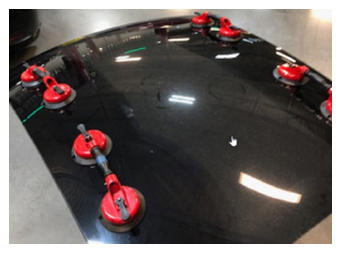

    G15078738Courtesy of TESLA, INC.

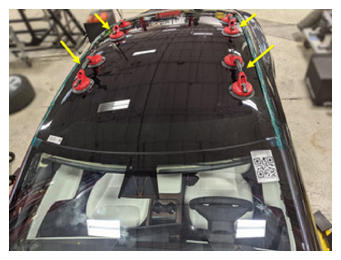

  2. With assistance, position the roof glass onto the vehicle for a dry fit.
    G15078739Courtesy of TESLA, INC.

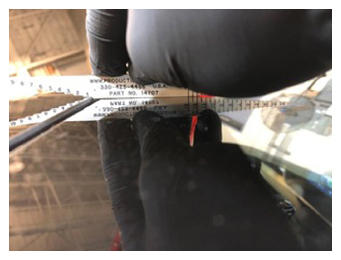

  3. Make sure the gaps are all within acceptable limits.
    NOTE: If the glass is too high, it may be necessary to trim or remove the net pads.

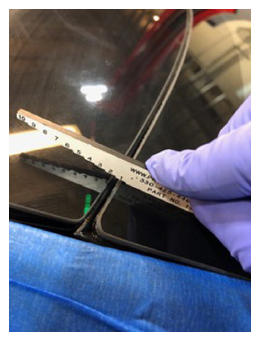

    G15078740Courtesy of TESLA, INC.
    G15078741Courtesy of TESLA, INC.

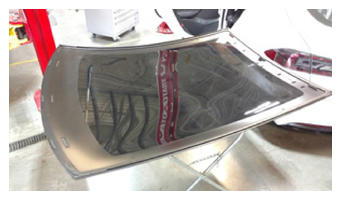

  4. With assistance, remove the roof glass and set it upside-down onto a stand.
    G15078742Courtesy of TESLA, INC.
  5. Remove the protective tape from the vehicle body.

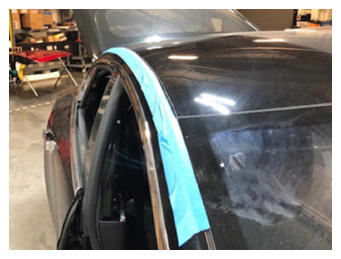

    G15078743Courtesy of TESLA, INC.

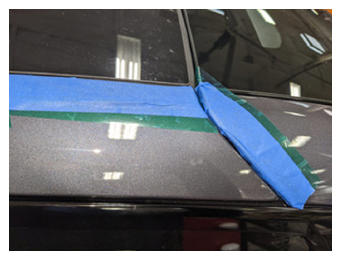

    G15078744Courtesy of TESLA, INC.
  6. Clean the glass mating surfaces with isopropyl alcohol, and wait for 1 minute to let the surfaces dry.
    G15078745Courtesy of TESLA, INC.

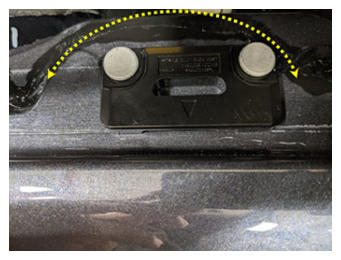

  7. Apply primer to the body on the urethane path and any areas that were damaged during removal.
    NOTE: If the vehicle is equipped with roof rack anchors, primer should go around the inside of the roof bracket. If vehicle is not equipped with roof rack brackets, primer outside the roof rack bracket mounting holes. Allow primer to dry for at least 1 minute.
    G15078746Courtesy of TESLA, INC.

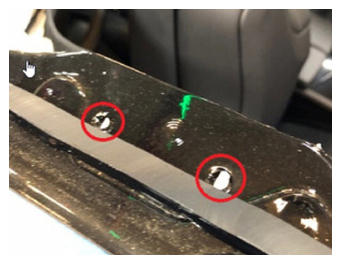

    G15078747Courtesy of TESLA, INC.
  8. Inspect the replacement roof glass for a thick extruded urethane bead.
    • Older roof glass with a thick extruded urethane bead, go to step.
    • Newer roof glass without a thick extruded urethane bead, continue to the next step.

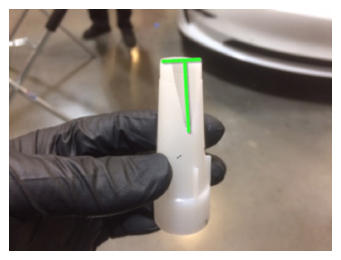

  9. Prepare urethane and a caulking gun with nozzle of 8mm wide and 14mm deep.
    G15078748Courtesy of TESLA, INC.

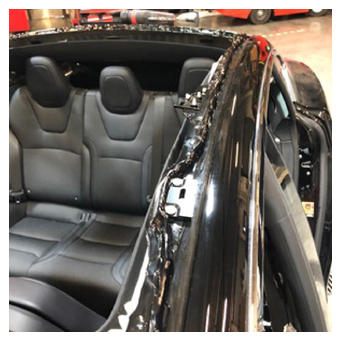

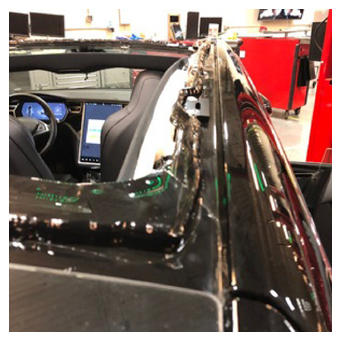

  10. Apply urethane to the body.
    G15078751Courtesy of TESLA, INC.
    G15078752Courtesy of TESLA, INC.

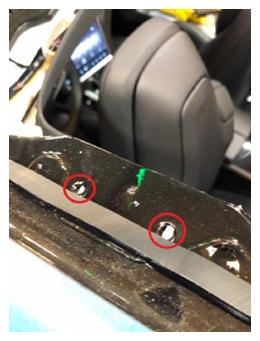

    G15078753Courtesy of TESLA, INC.

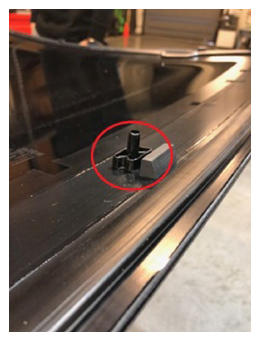

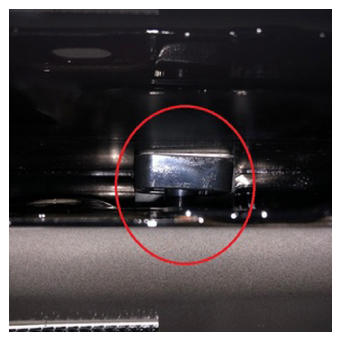

  11. With assistance, place the fixed roof glass onto the vehicle but do not set it yet.
    NOTE: Align the datums on the LH side of the vehicle at the front and rear corners of glass to the body.
    G15078754Courtesy of TESLA, INC.

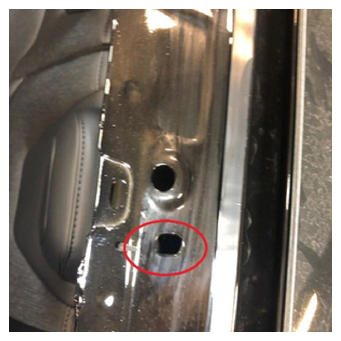

    G15078755Courtesy of TESLA, INC.
    G15078756Courtesy of TESLA, INC.

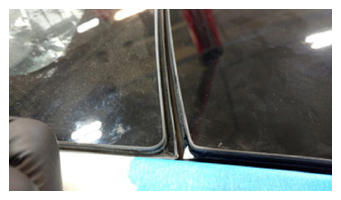

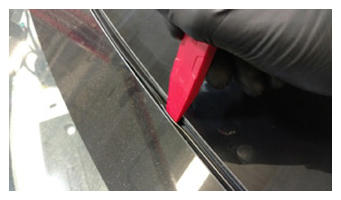

  12. Position the new seal at the front of the glass beneath the windshield seal.
    NOTE: Use a trim tool to properly seat the roof glass seal under the windshield seal if necessary.
    G15078757Courtesy of TESLA, INC.
    G15078758Courtesy of TESLA, INC.

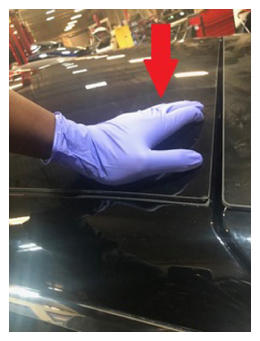

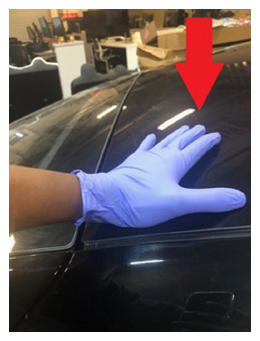

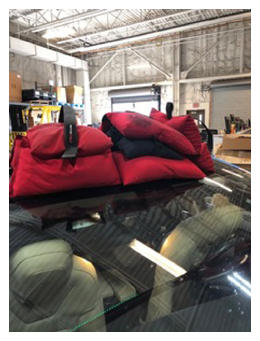

  13. Press the glass onto the body once in position.
    NOTE: Use sandbags for the front if needed.
    G15078759Courtesy of TESLA, INC.
    G15078760Courtesy of TESLA, INC.
    G15078761Courtesy of TESLA, INC.

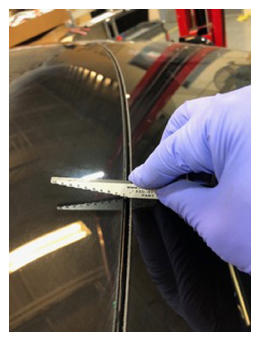

  14. Check that the gap and flushness at the liftgate glass, windshield and body sides are within CVIS specification and adjust as necessary.
    G15078762Courtesy of TESLA, INC.

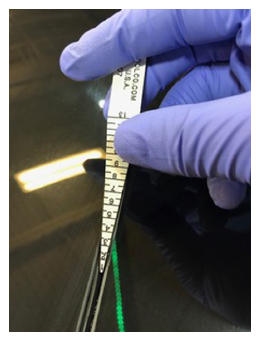

    G15078763Courtesy of TESLA, INC.

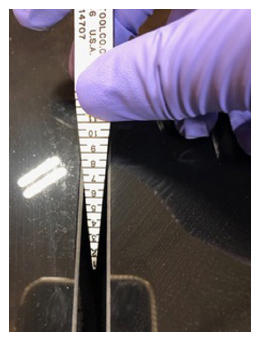

    G15078764Courtesy of TESLA, INC.

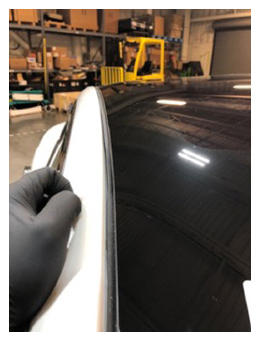

  15. Remove the suction cups from the fixed roof glass.
    G15078765Courtesy of TESLA, INC.

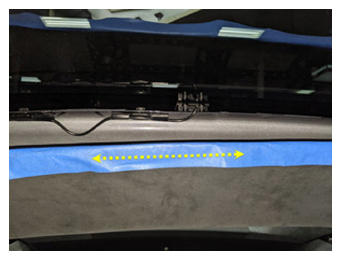

  16. Remove the protective tape from the headliner.
    G15078766Courtesy of TESLA, INC.

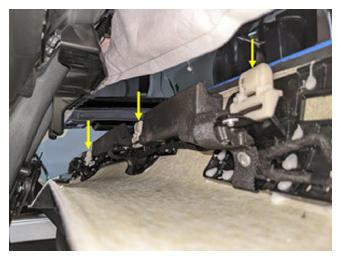

  17. Secure the tether clips to the headliner.
    NOTE: Make sure that there is an audible click when each clip is seated properly.
    G15078767Courtesy of TESLA, INC.

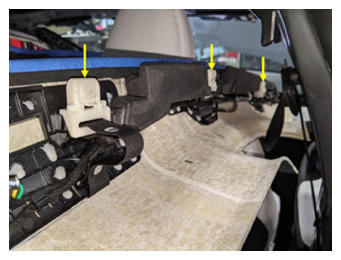

    G15078768Courtesy of TESLA, INC.

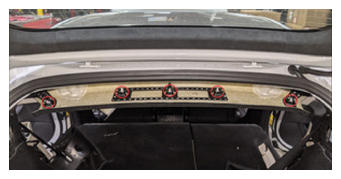

  18. Fasten the clips (x18) and hooks (x2) that attach the headliner to the body.
    NOTE: Push the coat hook upward and outward to secure hooks to the body flange at the top of the coat hook assembly

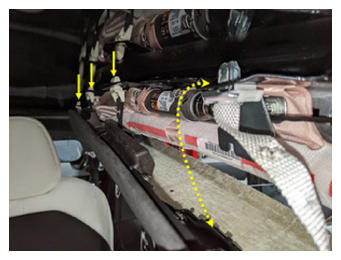

    G15078769Courtesy of TESLA, INC.

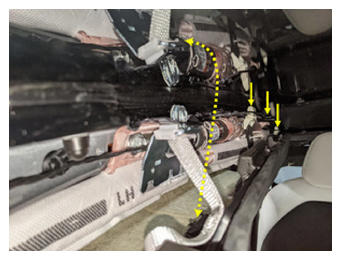

    G15078770Courtesy of TESLA, INC.
    G15078771Courtesy of TESLA, INC.

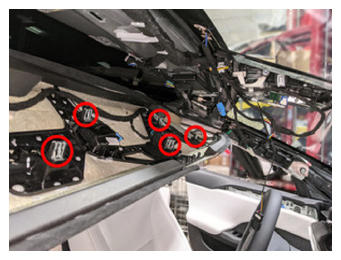

    G15078772Courtesy of TESLA, INC.
  19. Install the bolts (x2) that attach the rear of the headliner to the body.

    Torque 3 N.m (2.2 ft-lbs)

    NOTE: The bolts are located on the LH and RH sides of the headliner.

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket

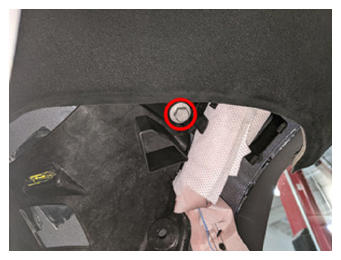

    G15078773Courtesy of TESLA, INC.

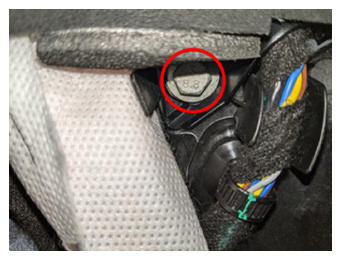

    G15078774Courtesy of TESLA, INC.

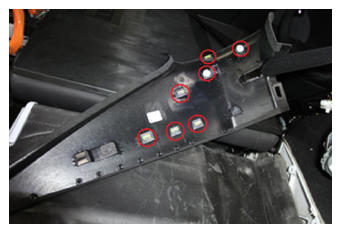

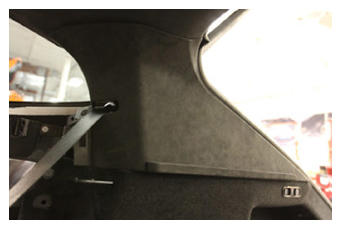

  20. Position the RH upper C-pillar trim onto the C-pillar, and then fasten the clips (x7) that attach the trim to the vehicle. Repeat this step for the LH side of the upper C-pillar trim.
    NOTE: Replace any damaged clips.
    G15078775Courtesy of TESLA, INC.
    G15078776Courtesy of TESLA, INC.
  21. Install the rear trunk parcel shelf. See Parcel Shelf - Rear Trunk (Remove and Replace) .
  22. Close the liftgate.

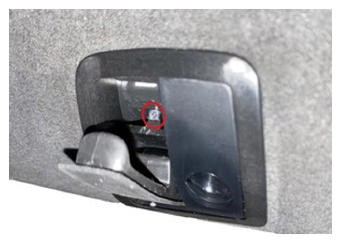

  23. Install the screw that attaches the RH rear coat hook to the headliner.

    2.5 N.m (1.8 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T25 socket
    G15078777Courtesy of TESLA, INC.

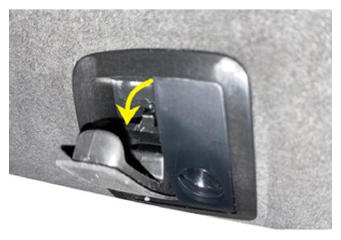

  24. Install the RH rear coat hook screw cover.
    G15078778Courtesy of TESLA, INC.

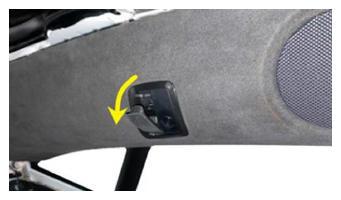

  25. Push to close the RH rear coat hook.
    G15078779Courtesy of TESLA, INC.
  26. Repeat step  23 through step  25 for the LH side of the vehicle.
  27. Install the RH and LH upper B-pillar trims. See Trim - B- Pillar - Upper - LH (Remove and Replace) .
  28. Fold the LH 2nd row seat to the up position.
    NOTE: Remove the seat cushion protection if present.
  29. Install the upper quad camera cover. See Quad Camera Cover - Upper (Remove and Replace) .
  30. Install the rear view mirror. See Mirror - Rear View (Remove and Replace) .
  31. Install the front passenger visor. See Sun Visor - LH (Remove and Replace) .
  32. Install the RH upper A-pillar trim. See Trim - A-Pillar - Upper - LH (Remove and Replace) .
  33. Install the RH IP end cap. See End Cap - Instrument Panel - LH (Remove and Replace) .
  34. Install the RH mid A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
  35. Repeat step  31 through step  34 for the LH side of the vehicle.
  36. Install the lower quad camera cover. See Quad Camera Cover - Lower (Remove and Replace) .
