Valance - Front Fascia - Remove And Replace: Remove

Open the LH front door and lower the LH front window.
Raise the vehicle Raise Vehicle - 2 Post Lift .
Remove the bolts and clips that attach the front fascia valance to the front aero shield.
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- 4 in extension
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.

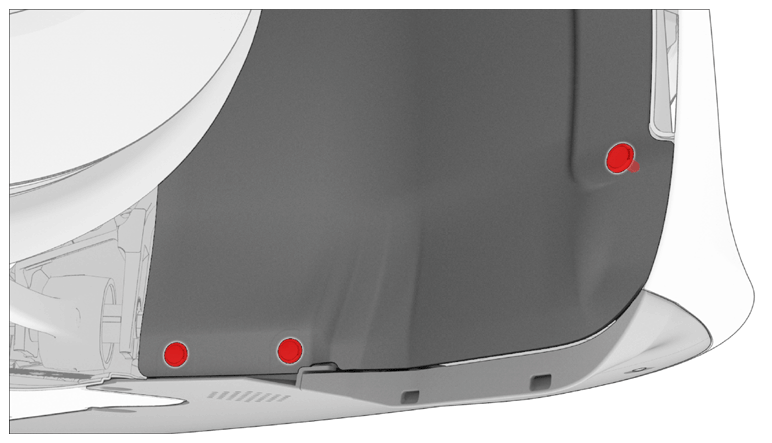

Release the three clips that attach the LH wheelhouse liner to the valance and front fascia.

Courtesy of TESLA, INC.
Release the three clips that attach the RH wheelhouse liner to the valance and front fascia.

Courtesy of TESLA, INC.
Release the electrical harness from the top of the front fascia valance, and then disconnect the electrical harness from the pedestrian warning speaker.
CAUTION: DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.

Courtesy of TESLA, INC.

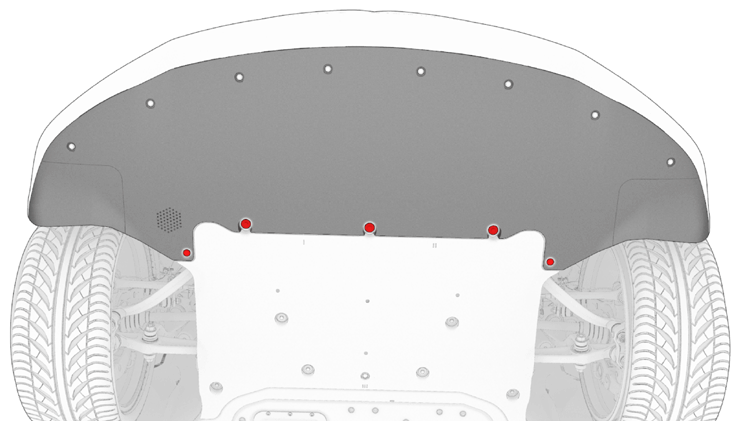

Release the eight clips that attach the valance to the front fascia.

Courtesy of TESLA, INC.
Remove the two nuts that attach the valance to the front fascia near the wheelhouse liners, and then remove the valance from the vehicle.
Tip: Use of the following tool(s) is recommended:
- 10 mm deep socket
- Ratchet/torque wrench
Courtesy of TESLA, INC.
