Reflex Marker - Taillight - RH - Remove And Replace: Install

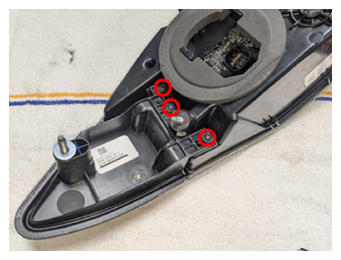

  1. Install the screws (x3) that attach the fixed door to the RH tail light.
    NOTE: 3x screws, T20, 2.5 N.m, 2x datums.

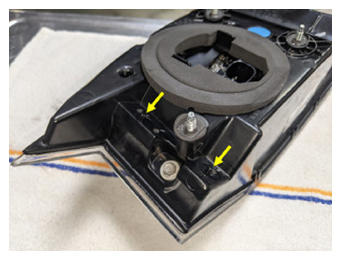

    NOTE: Ensure that the datums on the tail light align with the slots on the fixed door before installing the screws
    G15092523Courtesy of TESLA, INC.
    G15092524Courtesy of TESLA, INC.
  2. Install the RH tail light. See Taillight - RH (Remove And Replace) .
