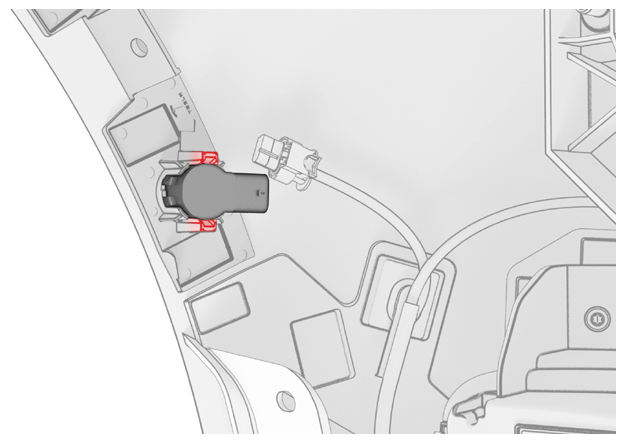

- Position the parking distance sensor on the front fascia, and then attach the sensor to the front fascia.
 Courtesy of TESLA, INC.
|

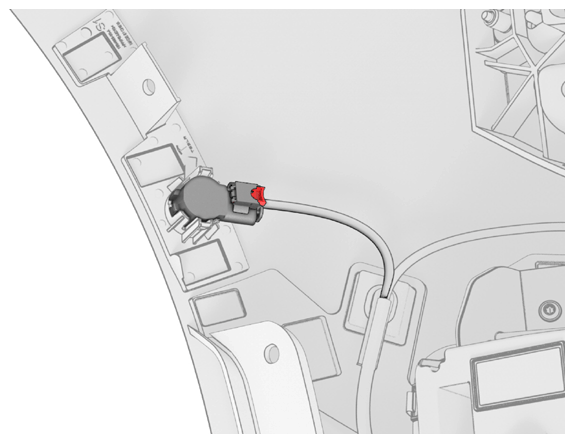

- Connect the electrical harness to the parking distance sensor.
CAUTION:
Push the red locking tab into the connector to engage the locking mechanism. DO NOT push down or pull up on the red locking tab.
 Courtesy of TESLA, INC.
|

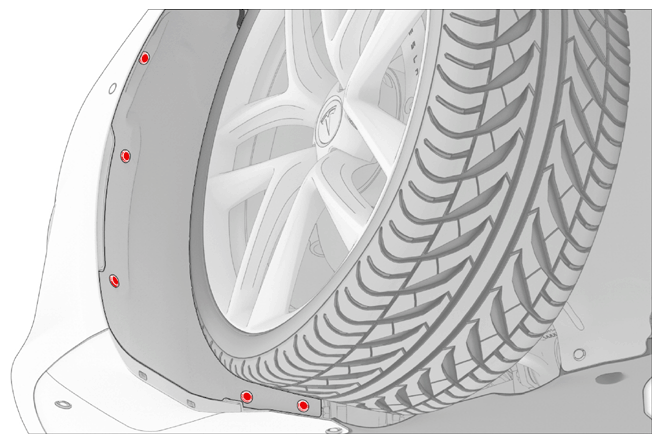

- Position the wheel arch liner to the front fascia, and then install the push clips that attach the wheel arch liner to the front fascia.
 Courtesy of TESLA, INC.
|
- Connect LV power. See LV Power (Disconnect And Connect)
.
NOTE:
After connecting LV power, do not shift the vehicle to Drive until the Toolbox routine (further below) is performed. Failure to do so can trigger vehicle alerts.
- On the vehicle touchscreen, touch Controls > Service > Jack Mode
to deactivate Jack Mode.
- On the vehicle touchscreen, touch Controls > Suspension > Standard
.
- Using a laptop, connect to the vehicle with the ethernet diagnostic kit and Toolbox 3.
- Select "Actions/Autodiag" and search for "USS Addresses".
- Select "PROC_USM_FRONT_PROGRAM-USS-ADDRESSES". Click "Run" and allow the routine to complete.
NOTE:
Select "X" at the top right of the window to close once the routine is complete.
- Disconnect Toolbox 3 from the vehicle and remove the laptop and ethernet diagnostic kit.
- Raise the LH front window and close the LH front door.
