- Inspect the liftgate glass for any damage that is not reworkable.
NOTE:
Replace the liftgate glass if there is any damage that cannot be rectified.
 Courtesy of TESLA, INC.
|

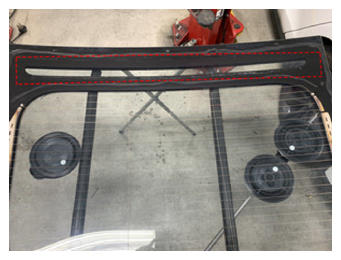

- Use an isopropyl alcohol (IPA) wipe to clean the CHMSL mounting location on the liftgate glass.
NOTE:
Allow the surface to dry for at least one minute.
 Courtesy of TESLA, INC.
|

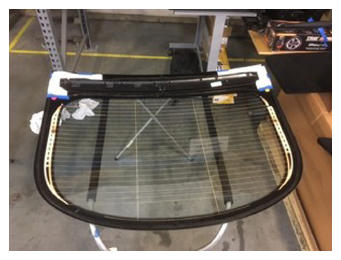

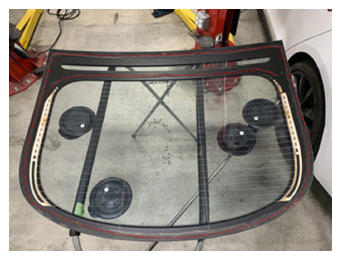

- Use an isopropyl alcohol (IPA) wipe to clean the urethane path on the liftgate glass.
NOTE:
Allow the surface to dry for at least one minute.
 Courtesy of TESLA, INC.
|

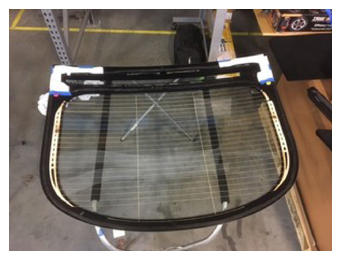

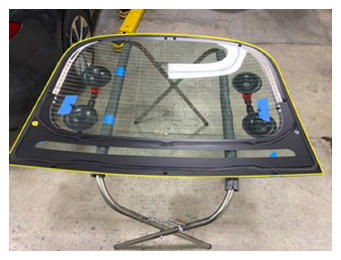

- Use an isopropyl alcohol (IPA) wipe to clean the urethane path on liftgate assembly.
NOTE:
Allow the surface to dry for at least one minute.
 Courtesy of TESLA, INC.
|

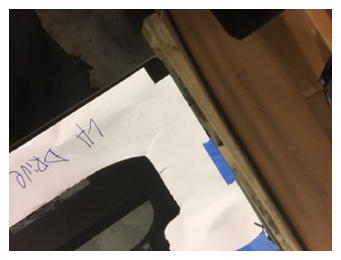

- Print out the CHMSL template and cut it out.
NOTE:
The template is available here. When correctly sized, the square should print at 1 inch square.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

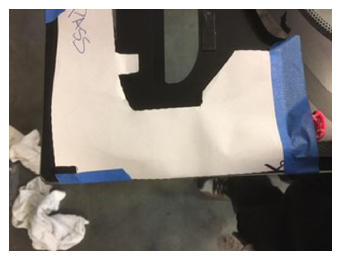

- Place the CHMSL templates on the upper corner of the liftgate glass, and then secure the template with tape.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

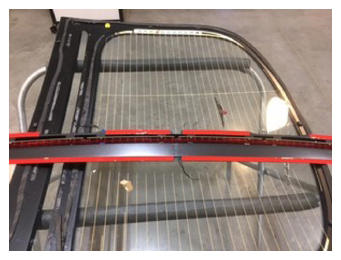

- Remove the red tape covers from the CHMSL.
 Courtesy of TESLA, INC.
|
- Position the CHMSL to upper corners of template, and then apply pressure to the CHMSL to adhere the 3M tape to liftgate glass.
 Courtesy of TESLA, INC.
|
- Remove the CHMSL templates from liftgate glass.

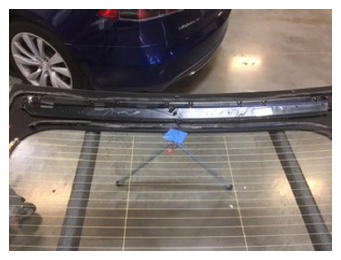

- Use tape to secure the CHMSL harness to the liftgate glass.
 Courtesy of TESLA, INC.
|
- Install the liftgate glass. See Liftgate Glass (Remove and Install)
.
