Gas Strut - Liftgate - Remove And Replace: Install

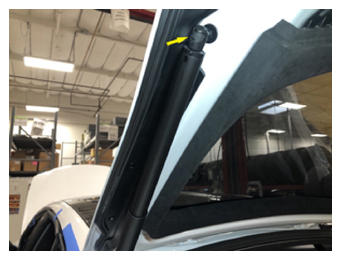

  1. Install the liftgate gas strut onto the ball stud on liftgate, and then install the clip.
    G15079355Courtesy of TESLA, INC.

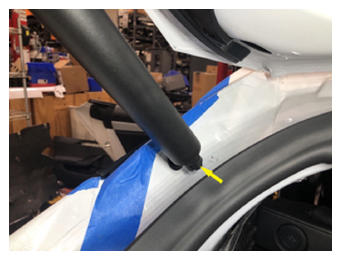

  2. Install the liftgate gas strut onto the ball stud on the body, and then install the clip.
    G15079356Courtesy of TESLA, INC.
  3. Remove the hood prop.
  4. Close the liftgate.
