Riser - Outer - Driver Seat - Remove And Replace: Install

  1. Position the driver seat outer riser into the vehicle, and then install the clips (x2) that attach the riser to the vehicle.

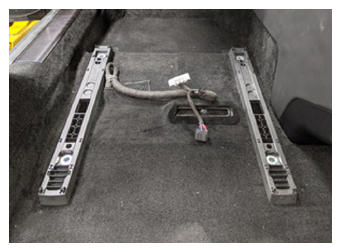

    G15081735Courtesy of TESLA, INC.

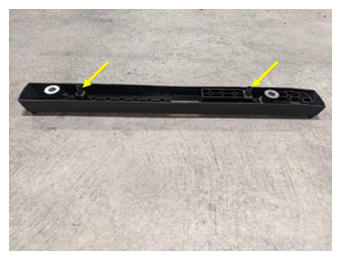

    G15081736Courtesy of TESLA, INC.
  2. Install the driver seat into the vehicle. See Seat Assembly - 1st Row - LH (Remove And Replace)
