Recliner Tube - Driver Seat - Remove And Replace: Install

  1. Position the driver seat recliner onto the motor side of the driver seat assembly, and then push the recliner tube through the seat frame. Ensure the tube extends 16 mm on the inboard side of the seat back once installed.
    NOTE: The tube will need to be guided into the square drive on the inboard side of the seat frame.
    G15081700Courtesy of TESLA, INC.

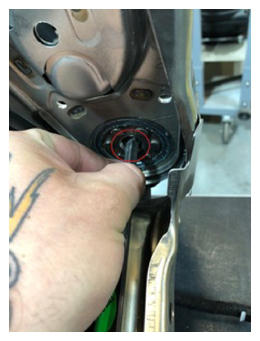

    G15081701Courtesy of TESLA, INC.
    G15081702Courtesy of TESLA, INC.
  2. With assistance, install a new driver seat recliner tube nut.
    NOTE: The flared end that engages the outboard side of the seat back frame will need to be held. Place a 12mm socket over the clip and set it in place with the dead blow hammer.
    G15081703Courtesy of TESLA, INC.
  3. With assistance, maneuver the driver seat back trim assembly downward onto the seat frame to install it onto the seat assembly.
    G15081704Courtesy of TESLA, INC.
  4. Install the clip that attaches the driver seat harness to the RH side of seat back frame.
    G15081705Courtesy of TESLA, INC.
  5. Carefully secure the RH side of the driver seat back trim onto the driver seat frame.

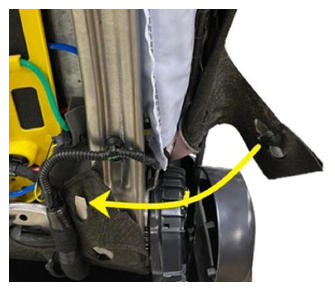

    G15081706Courtesy of TESLA, INC.
    G15081707Courtesy of TESLA, INC.
  6. Install new nuts (x2) that attach the driver seat side air bag to the seat back frame assembly.

    5.4 N.m (4.0 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 11 mm socket
    G15081708Courtesy of TESLA, INC.
    G15081709Courtesy of TESLA, INC.
  7. Fasten the tabs (x2) that attach the lower portion of the driver seat backrest lumbar support to the seat back frame.
    G15081710Courtesy of TESLA, INC.
  8. Install the bolt that attaches the driver seat backrest lumbar support to the seat back frame.

    5 N.m (3.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15081711Courtesy of TESLA, INC.
  9. Install the clip that attaches the driver seat side airbag harness to the driver seat, seat frame.
    G15081712Courtesy of TESLA, INC.
  10. Connect the driver seat side air bag electrical connector, and then secure the safety lock.
    G15081713Courtesy of TESLA, INC.
    G15081714Courtesy of TESLA, INC.
  11. Carefully secure the LH side of the driver seat, seat cover and foam onto the seat frame.
    G15081715Courtesy of TESLA, INC.
    G15081716Courtesy of TESLA, INC.
  12. Secure the retainers (x6), and then secure the trim strap onto the driver seat, seat back frame.
    G15081717Courtesy of TESLA, INC.
  13. Secure the female side of microphone connector and harness clips (x2) onto seat back suspension.
    G15081718Courtesy of TESLA, INC.
    G15081719Courtesy of TESLA, INC.
  14. Connect the driver seat microphone, and then secure harness clip onto the seat back foam.
    G15081720Courtesy of TESLA, INC.
    G15081721Courtesy of TESLA, INC.
  15. Slide the fan controller electrical connector downward to install it onto the bracket, and then connect the electrical connector.
    G15081722Courtesy of TESLA, INC.
  16. With assistance, align and fully secure the clips that attach the driver seat back shell to the seat assembly.
    G15081723Courtesy of TESLA, INC.
    G15081724Courtesy of TESLA, INC.
    G15081725Courtesy of TESLA, INC.
  17. Install the driver headrest trim. See Trim - Headrest - Driver (Remove And Replace) .
  18. Position the driver seat assembly onto the seat back.
    NOTE: Protect the seat from damage.
  19. Secure the clip and bracket that attach the FSC and FSB vent heat pad harnesses to the seat assembly.
    NOTE: One harness is for the seat cushion and the other is for the seat back. The upper bracket aids in routing while the lower clip secures them.
    G15081726Courtesy of TESLA, INC.
  20. Connect the FSB vent heat pad electrical connector from the seat controller.
    G15081727Courtesy of TESLA, INC.
  21. Secure the seat back elastic straps (x2) to the seat frame.

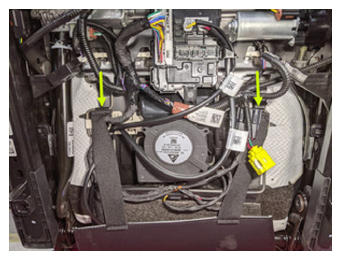

    G15081728Courtesy of TESLA, INC.
  22. Install the front seat side shield RH carrier from the driver seat. See Carrier - RH - Side Shield - Inboard - Front Seat (Remove And Replace) .
  23. Install the driver seat inboard side shield. See Side Shield - Inboard - Driver Seat (Remove And Replace) .
  24. Connect the electrical harness to the back rest and cushion adjust switch assembly, and then verify the functions of the seat switches.
    G15081729Courtesy of TESLA, INC.
  25. Position the driver seat outboard side shield onto the seat, and then install the clips (x7) that attach the side shield to the seat.

    Tip: Apply pressure to the side shield to fully seat the clips. The side shield should sit flush against the seat cushion.

    G15081730Courtesy of TESLA, INC.
  26. Install the screw that attaches the driver seat outboard side shield to the seat assembly.

    4 N.m (2.9. ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 socket
    • 2 in extension
    • Ratchet/torque wrench
    G15081731Courtesy of TESLA, INC.
  27. Install the driver seat into the vehicle. See Seat Assembly - 1st Row - LH (Remove And Replace) .
