Motor - Seat Track - Driver Seat - Remove And Replace: Install

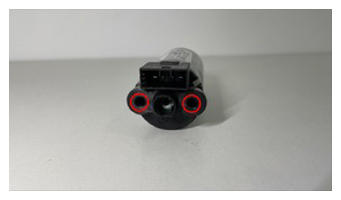

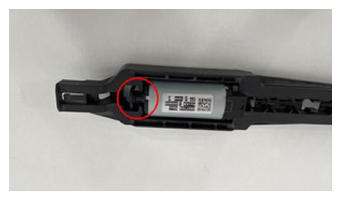

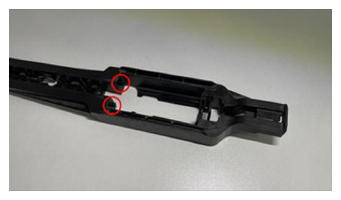

  1. Align the holes (x2) on the driver seat, seat track motor with the locating pin on the seat cushion frame, and then fasten the clip that attaches the driver seat, seat track motor onto the frame.
    G15081647Courtesy of TESLA, INC.
    G15081648Courtesy of TESLA, INC.
    G15081649Courtesy of TESLA, INC.

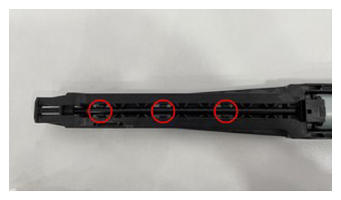

  2. Fasten the clips (x3) that attach the flexible shaft guide tube to the driver seat track motor frame.
    G15081650Courtesy of TESLA, INC.

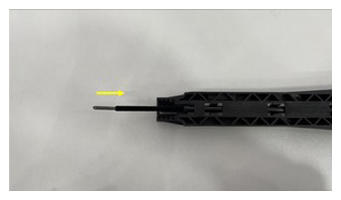

  3. Install the flexible shaft into the driver seat track motor.
    G15081651Courtesy of TESLA, INC.

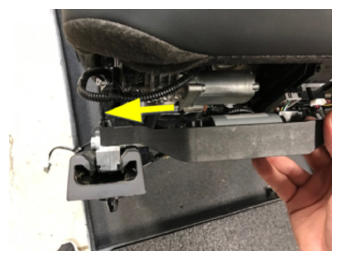

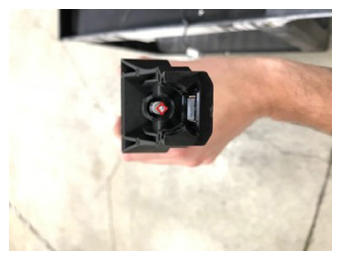

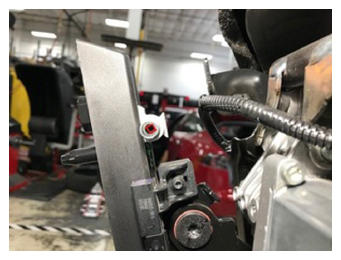

  4. Install the track motor bridge into the inboard seat track.
    NOTE: The track motor cable is keyed square and must be aligned with inboard track. Turn the cable by hand to align as needed. Slide the track motor bridge into the inboard track until it is fully seated.
    G15081652Courtesy of TESLA, INC.
    G15081653Courtesy of TESLA, INC.
    G15081654Courtesy of TESLA, INC.
  5. Install the outboard seat track to the track motor bridge.
    NOTE: The track motor cable is keyed square and must be aligned with outboard track. Turn the cable by hand to align as needed. Slide the outboard track into the track motor bridge until it is fully seated.
    G15081655Courtesy of TESLA, INC.

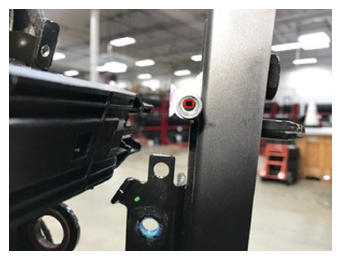

    G15081656Courtesy of TESLA, INC.

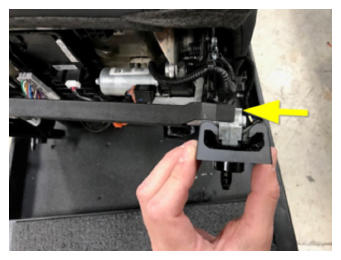

    G15081657Courtesy of TESLA, INC.

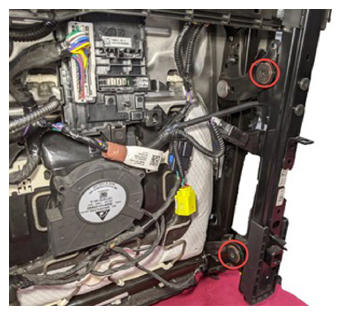

  6. Install new outboard bolts (x2) that attach the seat track to the seat cushion frame.

    23 N.m (17.0 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • T50 socket
    G15081658Courtesy of TESLA, INC.
  7. Connect the driver seat track motor electrical connector.

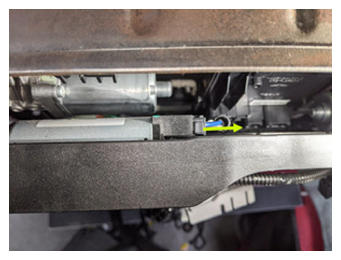

    G15081659Courtesy of TESLA, INC.

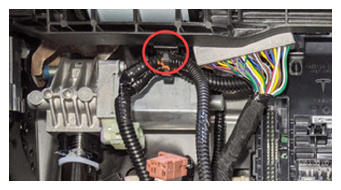

  8. Fasten the clip that attaches the driver seat, seat harness to the track bridge.
    G15081660Courtesy of TESLA, INC.

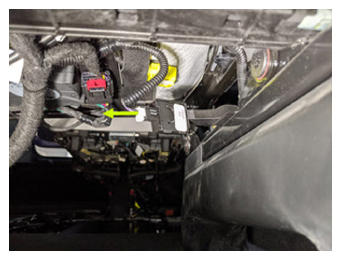

  9. Connect the driver seat left footwell LED electrical connector.
    G15081661Courtesy of TESLA, INC.
  10. Fasten the clip that attaches the driver seat, seat harness to the RH side seat track.

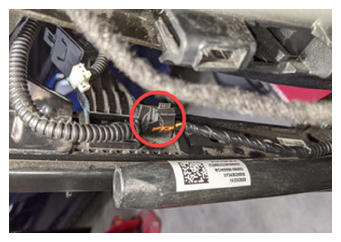

    G15081662Courtesy of TESLA, INC.

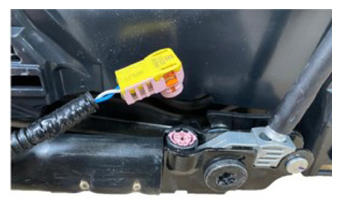

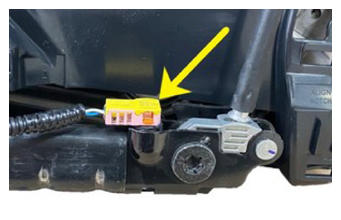

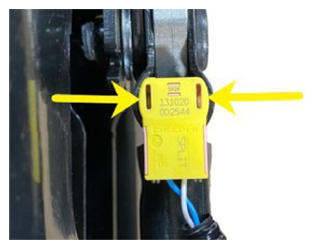

  11. Connect the LH lap pretensioner electrical connector, and then secure the safety lock.
    G15081663Courtesy of TESLA, INC.
    G15081664Courtesy of TESLA, INC.
    G15081665Courtesy of TESLA, INC.

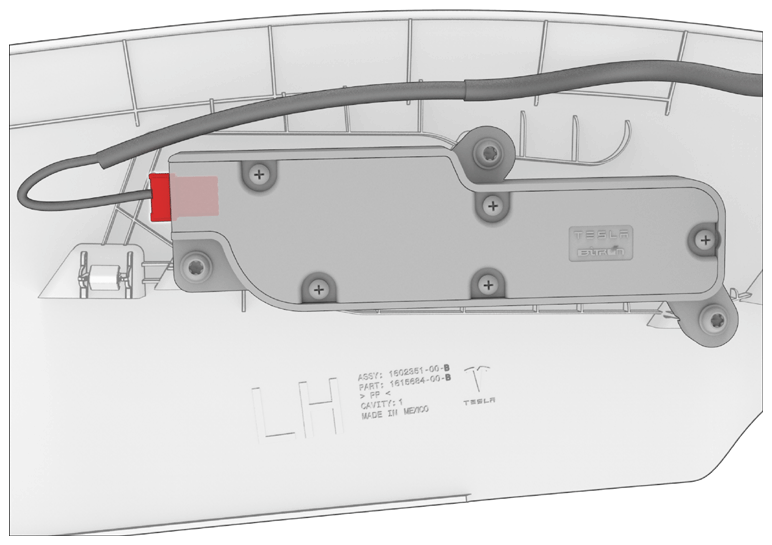

  12. Connect the electrical harness to the back rest and cushion adjust switch assembly, and then verify the functions of the seat switches.
    G15081666Courtesy of TESLA, INC.

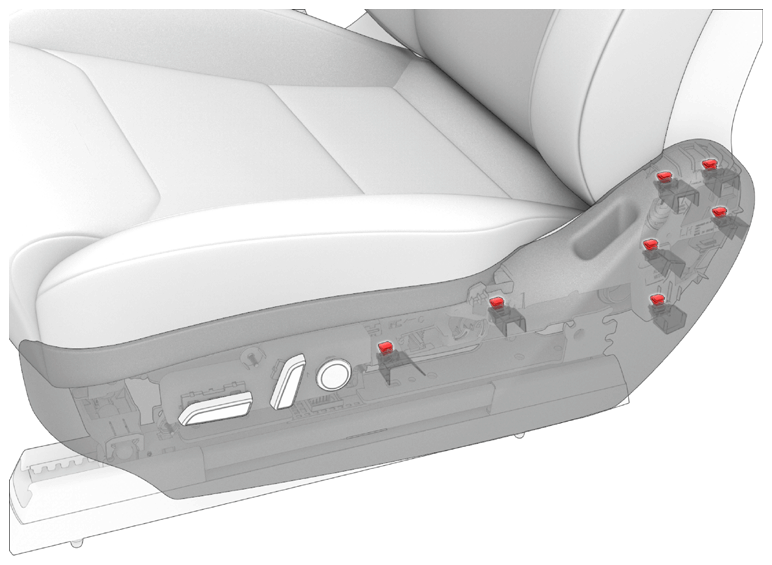

  13. Position the driver seat outboard side shield onto the seat, and then install the clips (x7) that attach the side shield to the seat.

    Tip: Apply pressure to the side shield to fully seat the clips. The side shield should sit flush against the seat cushion.

    G15081667Courtesy of TESLA, INC.
  14. Install the screw that attaches the driver seat outboard side shield to the seat assembly.

    4 N.m (2.9. ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 socket
    • 2 in extension
    • Ratchet/torque wrench

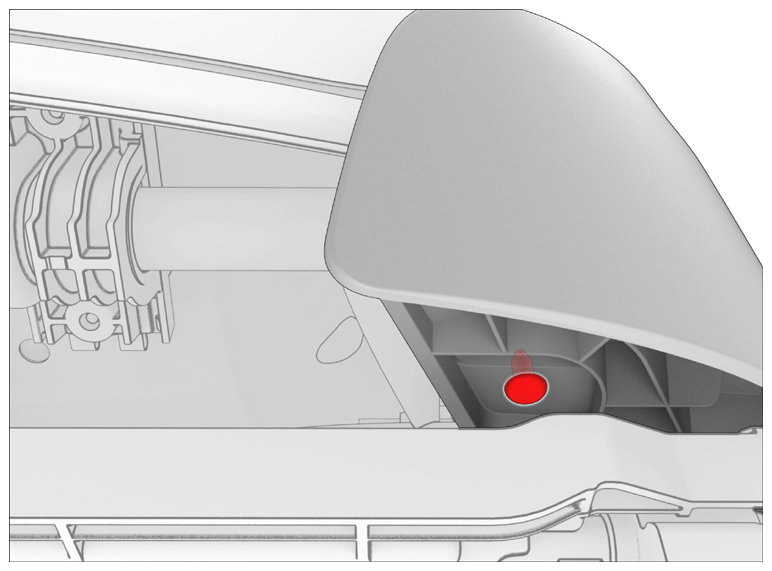

    G15081668Courtesy of TESLA, INC.
  15. Install the driver seat. See Seat Assembly - 1st Row - LH (Remove And Replace) .
  16. Perform a seat calibration. See SEAT - 1ST ROW (CALIBRATION) .
  17. Raise the LH windows and close the LH doors.
